| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |

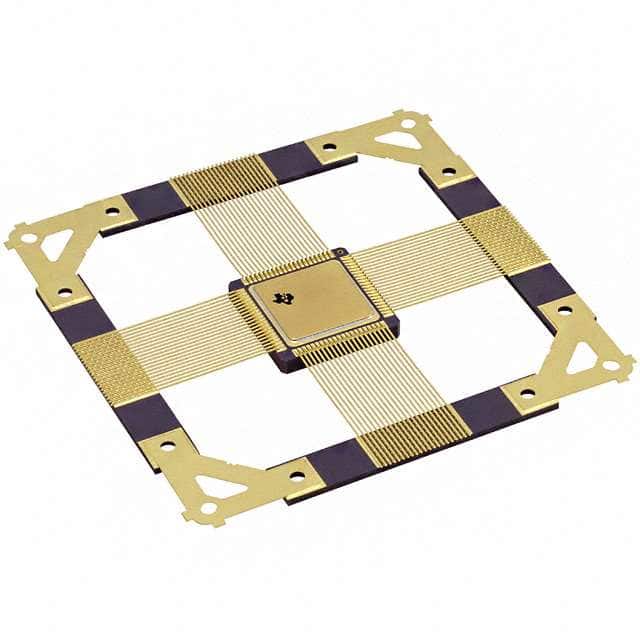

The ADS1278SHFQ is a high-temperature, 24-bit, 8-channel, simultaneous-sampling sigma-delta analog-to-digital converter (ADC) from Texas Instruments. It features a differential input architecture and an external reference, providing a signal-to-noise ratio (SNR) of 111 dB.
It supports a maximum sample rate of 144 ksps and operates from an analog supply of 4.75 V to 5.25 V and a digital core supply of 1.65 V to 1.95 V. Typical power consumption is 530 mW. The device includes a digital low-pass filter and offers a daisy-chainable SPI interface.
This ADC is rated for extreme temperature environments, operating from -55°C to 210°C. It is available in an 84-lead CBFQFP exposed pad package (84-CFP) for surface mount assembly. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $509.35 | $509.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-55°C to 210°C.
84-CBFQFP Exposed Pad and Tie Bar.
24 bits.
144 ksps.
8 differential input channels.
SPI.
RoHS3 Compliant (unverified).
