ADS1274IPAPR The ADS1274IPAPR is a 24-bit, 4-channel simultaneous-sampling delta-sigma analog-to-digital converter from ADI Electronics. It offers a data rate up to 144kSPS and a 70kHz bandwidth.
Mfr Part #:

ADS1274IPAPR

Available from 1 distributors
Mfr Name: ADI Electronics
ADI Electronics
The ADS1274IPAPR is a 24-bit, 4-channel simultaneous-sampling delta-sigma analog-to-digital converter from ADI Electronics. It offers a data rate up to 144kSPS and a 70kHz bandwidth.
✓ Total Stock: 2,528 pcs
$ Price Range: $18.72

ADS1274IPAPR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,528 pcs
On Request
2528 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS1274IPAPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channels
Data Rate
Filter Type
Interface
Operating Mode
Resolution
Tape & Reel
View Similar Products (0)

ADS1274IPAPR Description

Short technical summary and product information.

The ADS1274IPAPR is a high-performance 24-bit delta-sigma analog-to-digital converter (ADC) designed for wide bandwidth applications. It supports simultaneous sampling of four channels with data rates up to 144kSPS.



Key electrical specifications include a 70kHz bandwidth, 111dB SNR in High-Resolution mode, and -108dB THD. The device features selectable operating modes such as High-Speed, High-Resolution, Low-Power, and Low-Speed, allowing for flexibility in design. It also includes a linear phase digital filter and supports SPI or Frame-Sync serial interfaces. The analog supply is 5V, digital core is 1.8V, and I/O supply ranges from 1.8V to 3.3V.

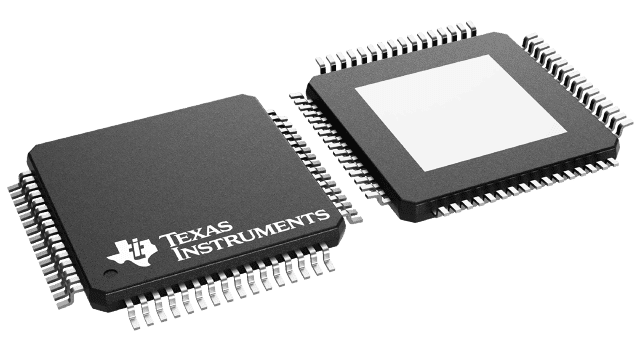

This ADC is housed in a 64-pin HTQFP package and operates within a temperature range of -40°C to 125°C. It is suitable for applications such as vibration/modal analysis, multi-channel data acquisition, acoustics, strain gauges, and pressure sensors.

ADS1274IPAPR Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Canonical Name: ADS1274IPAPR 24-Bit, 144kSPS, 4-Channel Simultaneous-Sampling Delta-Sigma ADC
Subcategory: Delta-Sigma ADC

ADS1274IPAPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADS1274IPAPR Estimated Pricing

Qty Low High
1+ $18.72 $18.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS1274IPAPR Features

  • 24-bit resolution and 144kSPS data rate.
  • Simultaneously samples four input channels.
  • Achieves 70kHz bandwidth and 111dB SNR.
  • Features selectable operating modes for flexibility.
  • Available in a 64-pin HTQFP package.

ADS1274IPAPR Applications

  • Ideal for vibration analysis applications.
  • Suitable for multi-channel data acquisition.
  • Used in acoustic and dynamic measurements.
  • Applicable for strain gauge systems.
  • Can be used for pressure sensor interfaces.

ADS1274IPAPR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the ADS1274IPAPR?

The maximum data rate for the ADS1274IPAPR is 144kSPS.

What is the bandwidth of the ADS1274IPAPR?

The ADS1274IPAPR has a bandwidth of 70kHz.

What is the SNR of the ADS1274IPAPR in High-Resolution Mode?

The SNR in High-Resolution Mode for the ADS1274IPAPR is 111dB.

What is the operating temperature range for the ADS1274IPAPR?

The operating temperature range for the ADS1274IPAPR is -40°C to 125°C.

What package type is the ADS1274IPAPR available in?

The ADS1274IPAPR is available in a 64-pin HTQFP package.
