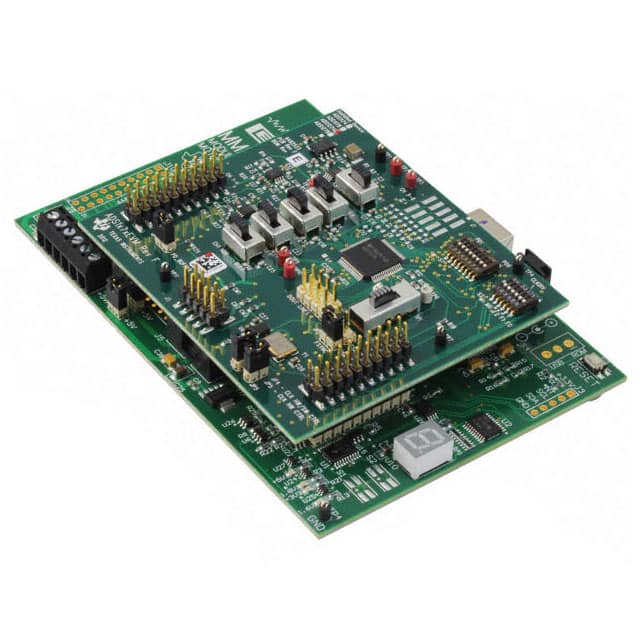

The ADS1274EVM-PDK from Texas Instruments is a performance development kit designed to evaluate the ADS1274 24-bit, 4-channel, delta-sigma analog-to-digital converter. This evaluation module (EVM) provides a complete platform for testing all aspects of the ADS1274 ADC, including its SPI data interface and high-accuracy conversion capabilities. The board accepts an input range of ±VREF and achieves a sampling rate of 128kSPS, with typical power consumption of 31mW at 52kSPS.
The ADS1274EVM-PDK includes the evaluation board, software, and documentation for rapid prototyping and system analysis. The board integrates supporting components such as voltage references (REF5025, REF3125), operational amplifiers (OPA2350, OPA1632), and power management ICs (TPS73018, TPS65131). The kit is compatible with ADCPro software and communicates via SPI interface, making it suitable for precision measurement and data acquisition applications.
The supplied contents include the populated board(s) with all necessary passive and active components. The PDK variant adds the performance demonstration kit hardware and software for enhanced evaluation capabilities. This kit is intended for design engineers evaluating the ADS1274 for use in industrial, medical, and instrumentation systems requiring high-resolution analog-to-digital conversion.
The board evaluates the ADS1274, which is a 24-bit delta-sigma ADC.
It supports 4 simultaneous-sampling input channels.
The maximum sampling rate is 128 kSPS.
The board uses an SPI digital interface.
Yes, it is listed as RoHS3 Compliant (unverified).
