ADS1191IPBSR The ADS1191IPBSR is a 16-bit, 1-channel low-power analog front end (AFE) for ECG applications. It features SPI interface, programmable gain, and operates from -40°C to +85°C.
Mfr Part #:

ADS1191IPBSR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADS1191IPBSR is a 16-bit, 1-channel low-power analog front end (AFE) for ECG applications. It features SPI interface, programmable gain, and operates from -40°C to +85°C.
✓ Total Stock: 12,648 pcs
$ Price Range: $1.90

ADS1191IPBSR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
11,092 pcs
On Request
11092 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,556 pcs
On Request
1556 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS1191IPBSR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Mounting Type
Number of Bits
Number of Channels
Operating Temperature Range
Power (Watts)
Supplier Device Package
Voltage
View Similar Products (0)

ADS1191IPBSR Description

Short technical summary and product information.

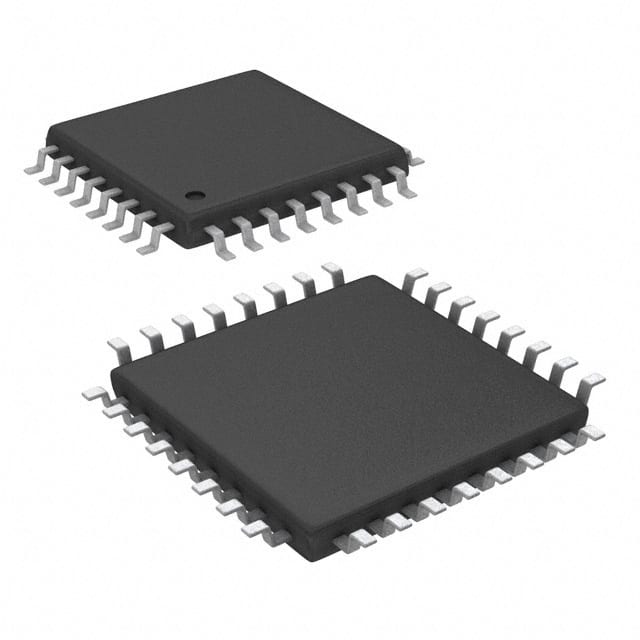

The ADS1191IPBSR is a 16-bit, 1-channel low-power analog front end (AFE) from Texas Instruments, designed for biopotential measurements such as electrocardiogram (ECG) in portable medical, sports, and fitness devices. It integrates a delta-sigma analog-to-digital converter (ADC) with a programmable gain amplifier (PGA), internal reference, and oscillator, reducing external component count and system size.



Key specifications include a resolution of 16 bits, a single input channel, and an SPI-compatible serial interface. The device achieves a typical power consumption of 335 µW per channel, making it suitable for battery-operated applications. Input-referred noise is 24 µVpp at 150 Hz bandwidth with a gain of 6, and common-mode rejection ratio (CMRR) is -95 dB typical. The programmable gain can be set to 1, 2, 3, 4, 6, 8, or 12, and the data rate is adjustable from 125 SPS to 8 kSPS.



The ADS1191IPBSR operates from a unipolar or bipolar analog supply of 2.7 V to 5.25 V and a digital supply of 1.7 V to 3.6 V. Input bias current is typically 1 nA. Additional features include built-in right leg drive amplifier, lead-off detection, test signals, and flexible power-down/standby modes. The device is packaged in a 32-TQFP (5x5 mm) surface-mount package and operates over the industrial temperature range of -40°C to +85°C.

ADS1191IPBSR Quick Information

Product Type: Analog Front End (AFE)
Canonical Name: ADS1191IPBSR 16-bit 1-Channel Analog Front End (AFE)
Subcategory: Biosensing AFE

ADS1191IPBSR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADS1191IPBSR Estimated Pricing

Qty Low High
1+ $1.90 $1.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS1191IPBSR Features

  • 16-bit resolution with delta-sigma ADC.
  • Low power consumption of 335 µW/channel.
  • SPI-compatible serial interface.
  • Programmable gain from 1 to 12.
  • Wide operating temperature range -40°C to +85°C.

ADS1191IPBSR Applications

  • Ideal for 1-lead ECG monitoring systems.
  • Suitable for portable ECG patch devices.
  • Used in sports and fitness heart rate monitors.
  • Designed for low-power biomedical signal acquisition.

ADS1191IPBSR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the ADS1191IPBSR?

The ADS1191IPBSR has a resolution of 16 bits.

How many input channels does the ADS1191IPBSR have?

It has a single input channel (1 channel).

What is the interface type of the ADS1191IPBSR?

It uses an SPI (Serial Peripheral Interface) interface.

What is the typical power consumption of the ADS1191IPBSR?

The typical power consumption is 335 µW per channel.

What is the operating temperature range of the ADS1191IPBSR?

The operating temperature range is -40°C to +85°C.

What are the supply voltage requirements for the ADS1191IPBSR?

The analog supply voltage range is 2.7V to 5.25V, and the digital supply voltage range is 1.7V to 3.6V.

What package does the ADS1191IPBSR come in?

The ADS1191IPBSR is available in a 32-TQFP (5x5mm) surface-mount package.
