| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

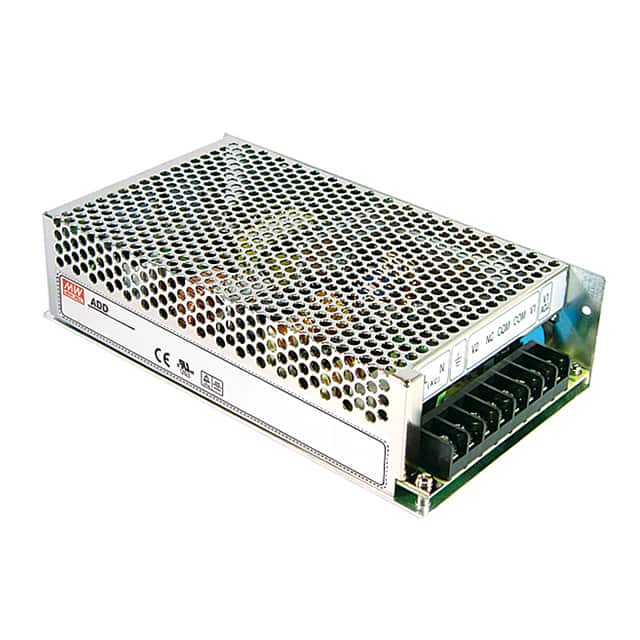

The Mean Well USA ADS-15548 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a primary output of 48V with a rated current of 2.9A, and a secondary 5V output with a 3A current rating, delivering a total power of 154.2W.
This converter features universal AC input across a wide voltage range (88-264VAC) and includes built-in active PFC functionality, contributing to its high efficiency of up to 82%. Protection features include constant current limiting for overload conditions and shutdown for over-voltage scenarios. The unit is designed for chassis mounting and cooled by free air convection.
Key specifications include an operating temperature range of -10°C to 60°C with derating, a typical MTBF of 199,000 hours, and compliance with safety standards such as UL62368-1 and TUV EN62368-1. The dimensions are 199mm x 110mm x 50mm.
The ADS-15548 accepts 88-264VAC or 124-370VDC.
The converter provides 48V at 2.9A and 5V at 3A.
-10°C to 60°C with derating.
199.0mm x 110.0mm x 50.0mm (7.83" x 4.33" x 1.97").
Overload protection (105-135% rated output power) and over voltage protection (115-135% rated output voltage).
82% typical.
150mVp-p on the 48V output and 100mVp-p on the 5V output.
