| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,839 pcs
|
16839 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Frequency | |
| GPIO | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type |

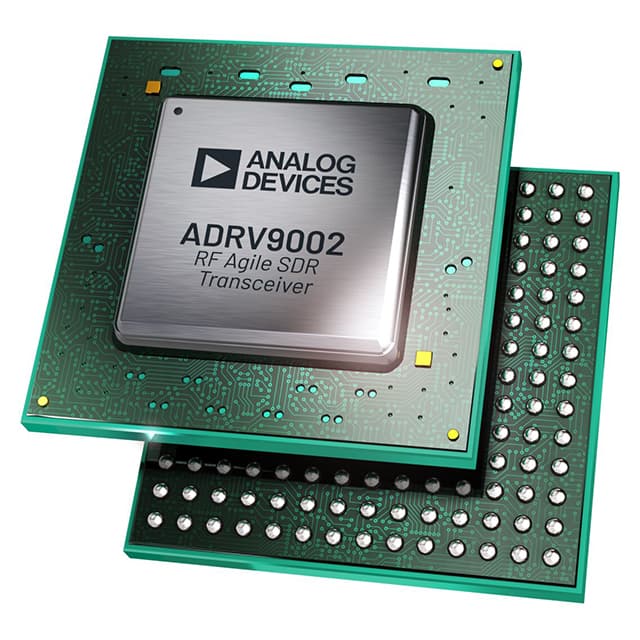

The Analog Devices ADRV9002BBCZ is a highly integrated RF transceiver designed for demanding communication applications. It features a 2x2 transceiver configuration with a broad frequency range spanning from 30 MHz to 6000 MHz. The device supports both narrow-band and wideband operation, with transmitter and receiver bandwidths configurable from 12 kHz up to 40 MHz.
Key electrical specifications include a transmitter output power of 7.8 dBm and a serial interface option of SPI. It also provides 12 GPIO pins for additional control and monitoring capabilities. The operating temperature range is -40°C to 110°C, making it suitable for various environmental conditions.
Packaged in a 196-ball CSPBGA (12x12 mm), the ADRV9002BBCZ is designed for surface mount applications. Its high integration and performance characteristics make it ideal for applications requiring efficient power consumption and robust RF performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 110°C
30 MHz to 6 GHz
12 kHz to 40 MHz
196-TFBGA, CSPBGA
Yes, it supports SPI.
