| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Frequency Range | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Topology |

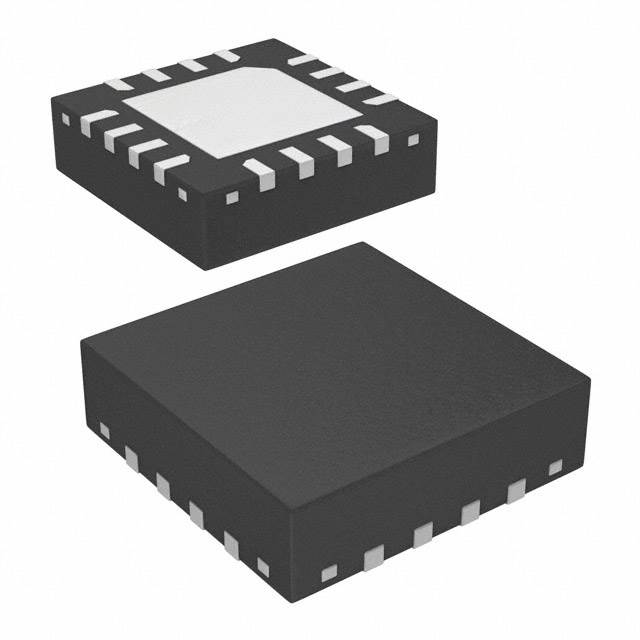

The ADRF5132BCPZN-R7 from Analog Devices Inc. is a general-purpose RF Switch IC designed for a wide range of applications. It features a reflective SPDT topology and operates across a broad frequency range from 700MHz to 5GHz.
Key electrical specifications include an isolation of 35dB and an insertion loss of 0.9dB, both measured at 5GHz. The device has an impedance of 50 Ohms and supports a supply voltage range of 4.5V to 5.4V. It is designed for surface mount installation and comes in a 16-LFCSP-WQ (3x3) package.
This RF switch operates within a temperature range of -40°C to 105°C. It is supplied in Tape & Reel (TR) or Cut Tape (CT) packaging. The ADRF5132BCPZN-R7 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.4V.
16-WFQFN Exposed Pad, CSP (16-LFCSP-WQ 3x3mm).
-40°C to 105°C.
700MHz to 5GHz.
35dB.
0.9dB.
62dBm.
