Mfr Part #:

ADRF5024BCCZN

Name: ADRF5024BCCZN
Brand: Analog Devices Inc./Maxim Integrated
SKU: ADRF5024BCCZN

Description:

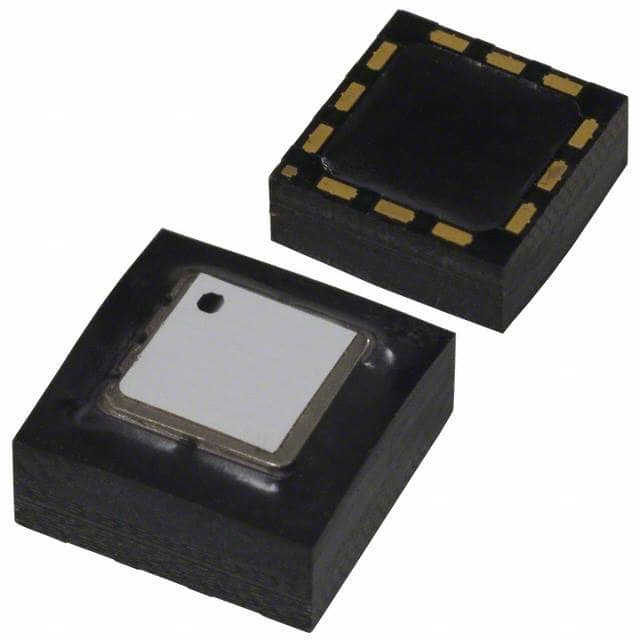

IC RF SWITCH SPDT 40GHZ 12LGA

Stock on Request

ADRF5024BCCZN Description

Short technical summary and product information.

IC RF SWITCH SPDT 40GHZ 12LGA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Analog Devices Inc./Maxim Integrated

IC RF SWITCH SPDT 40GHZ 12LGA

Category	RF Switches
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Circuit	SPDT
Frequency Range	100MHz ~ 44GHz
IIP3	50dBm
Impedance	50Ohm
Insertion Loss	1.7dB
Isolation	35dB
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 105°C
P1dB	27.5dBm
RF Type	General Purpose
Supplier Device Package	12-LGA (2.25x2.25)
Test Frequency	44GHz
Topology	Reflective
Voltage	3.15V ~ 3.45V
