| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Number of Outputs | |
| Number of Terminations | |
| Operating Temperature | |
| Output Voltage | |
| Reference Type | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Tolerance |

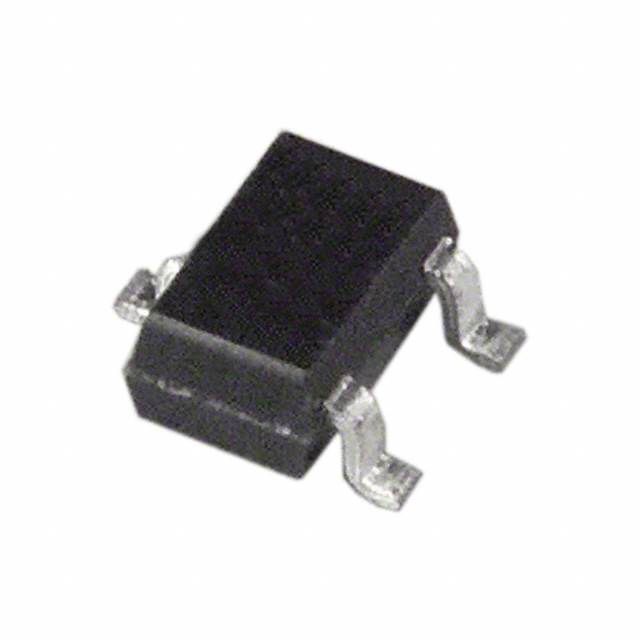

The Analog Devices ADR5044BKSZ-R2 is a two-terminal shunt voltage reference designed for precision applications. It provides a stable output voltage of 4.096V with a tight tolerance of ±0.1% and a temperature coefficient of 75ppm/°C.
This device is suitable for operation in harsh environments, with an operating temperature range of -40°C to 125°C. The ADR5044BKSZ-R2 features a maximum output current of 15mA and is available in a compact SC-70, SOT-323 surface-mount package.
Key specifications include a peak reflow temperature of 260°C and a terminal pitch of 0.65mm. The component is supplied in Tape & Reel packaging, making it suitable for automated assembly processes. Its bipolar technology and gull wing terminal form contribute to its reliable performance in various electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.096V
SC-70, SOT-323
-40°C to 125°C (TA)
±0.1%
75 ppm/°C
3 pins
Surface Mount
