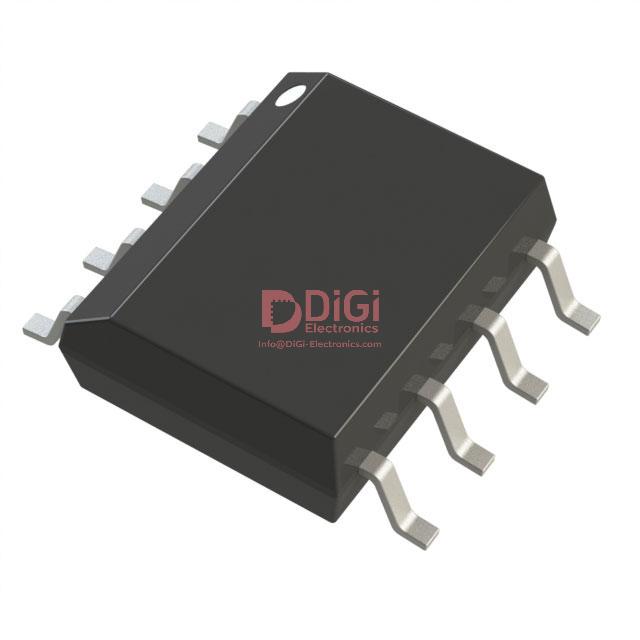

ADR431BRZ-REEL7 The Analog Devices ADR431BRZ-REEL7 is a series voltage reference IC featuring a fixed 2.5V output with a tight ±0.04% tolerance. It is designed for surface mounting in an 8-SOIC package.
Mfr Part #:

ADR431BRZ-REEL7

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The Analog Devices ADR431BRZ-REEL7 is a series voltage reference IC featuring a fixed 2.5V output with a tight ±0.04% tolerance. It is designed for surface mounting in an 8-SOIC package.
✓ Total Stock: 62 pcs
$ Price Range: $1.20

ADR431BRZ-REEL7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADR431BRZ-REEL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Mounting Type
Operating Temperature
Output Current
Output Type
Output Voltage
Supply Current
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

ADR431BRZ-REEL7 Description

Short technical summary and product information.

The ADR431BRZ-REEL7 from Analog Devices Inc. is a high-precision series voltage reference IC. It provides a stable fixed output voltage of 2.5V with a very low tolerance of ±0.04%. This component is capable of supplying up to 30 mA of output current and operates over a wide input voltage range of 4.5V to 18V.



With a low temperature coefficient of 3ppm/°C and low noise characteristics, the ADR431BRZ-REEL7 is suitable for applications requiring accurate voltage references. The device operates within an industrial temperature range of -40°C to 125°C (TA).



Designed for surface mounting, the ADR431BRZ-REEL7 comes in an 8-SOIC package. Its packaging is available on Cut Tape (CT) and Digi-Reel®, facilitating automated assembly processes. The part is classified under Power Management ICs and specifically as a Voltage Reference.

ADR431BRZ-REEL7 Quick Information

Product Type: Voltage Reference IC
Series: XFET®
Canonical Name: Analog Devices ADR431BRZ-REEL7 Voltage Reference IC
Subcategory: Series Voltage Reference IC

ADR431BRZ-REEL7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADR431BRZ-REEL7 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADR431BRZ-REEL7 Features

  • Fixed 2.5V output voltage.
  • Tight ±0.04% output tolerance.
  • Low temperature coefficient of 3ppm/°C.
  • Surface mount 8-SOIC package.
  • Wide operating temperature range.

ADR431BRZ-REEL7 Applications

  • Precision voltage regulation circuits.
  • Data acquisition systems.
  • Power supply monitoring.
  • Test and measurement equipment.

ADR431BRZ-REEL7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

4.5V to 18V.

What is the package type?

8-SOIC (0.154", 3.90mm Width).

What is the operating temperature range?

-40°C to 125°C.

What is the output voltage?

2.5V fixed.

What is the tolerance?

±0.04%.

What is the temperature coefficient?

3ppm/°C.

What is the noise level?

3.5µVp-p from 0.1Hz to 10Hz.

ADR431BRZ-REEL7 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
ADR431BRZ
ADR431BRZ
Analog Devices / Maxim Integrated
The Analog Devices ADR431BRZ is a series voltage reference IC with a fixed 2.5V output. It offers a tight tolerance of ±0.04% and an output current of 30 mA.
View Part
