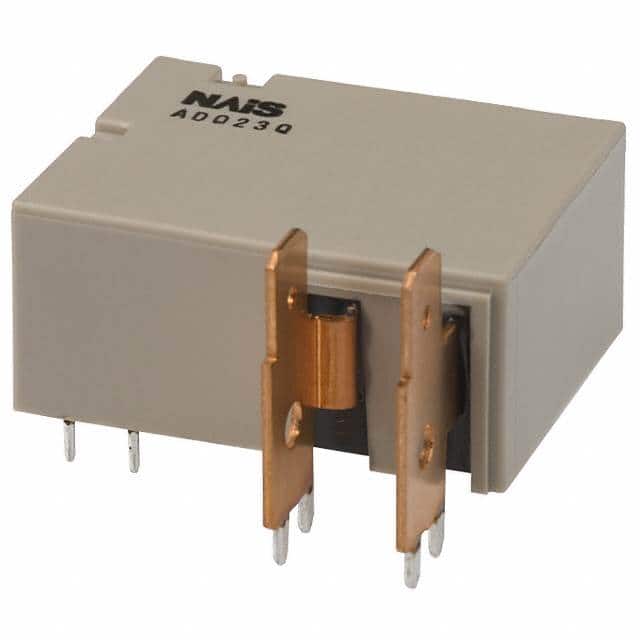

ADQ13Q012 The Panasonic ADQ13Q012 is a general purpose, single coil, latching power relay with a 1 Form A contact configuration. It is rated for 30A and operates with a 12VDC coil.
Mfr Part #:

ADQ13Q012

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ADQ13Q012 is a general purpose, single coil, latching power relay with a 1 Form A contact configuration. It is rated for 30A and operates with a 12VDC coil.
✓ Total Stock: 100,000 pcs
$ Price Range: $2.00

ADQ13Q012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADQ13Q012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Spacing
Mounting Type
Must Operate Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

ADQ13Q012 Description

Short technical summary and product information.

The Panasonic ADQ13Q012 is a general purpose power relay designed for high current applications. It features a 1 Form A (SPST-NO) contact configuration capable of switching up to 30A.



This relay operates with a 12VDC coil and requires 8.4 VDC to operate, with a coil current of 41.7 mA. Both the operate and release times are specified at 20 ms. The contact material is Silver Tin Oxide (AgSnO), suitable for reliable switching.



Designed for through-hole mounting, the ADQ13Q012 utilizes PC Pin and Quick Connect termination styles for easy integration. It is sealed for protection and operates within a temperature range of -40°C to 65°C.



This product is RoHS3 Compliant and has an MSL of 1 Unlimited. It is noted as a discontinued product with a last time buy date available.

ADQ13Q012 Quick Information

Product Type: Power Relay
Canonical Name: ADQ13Q012 Power Latching Relay
Subcategory: General Purpose Relay

ADQ13Q012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADQ13Q012 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADQ13Q012 Features

  • 30A contact rating for high current loads.
  • 12VDC coil with latching functionality.
  • 1 Form A (SPST-NO) contact configuration.
  • Through Hole mounting with quick connect terminals.
  • Sealed construction for environmental protection.

ADQ13Q012 Applications

  • Suitable for power switching circuits.
  • Used in control panel applications.
  • Ideal for load management systems.
  • Applicable in industrial automation.

ADQ13Q012 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact rating of the ADQ13Q012 relay?

The ADQ13Q012 relay has a contact rating of 30 A.

What is the coil voltage for the ADQ13Q012 relay?

The coil voltage for the ADQ13Q012 relay is 12VDC.

What type of contact form does the ADQ13Q012 relay have?

The ADQ13Q012 relay has a SPST-NO (1 Form A) contact form.

What is the operating temperature range for the ADQ13Q012 relay?

The operating temperature range for the ADQ13Q012 relay is -40°C to 65°C.

How is the ADQ13Q012 relay mounted?

The ADQ13Q012 relay is mounted using the Through Hole method.

Is the ADQ13Q012 relay RoHS compliant?

The ADQ13Q012 relay is RoHS3 Compliant.
