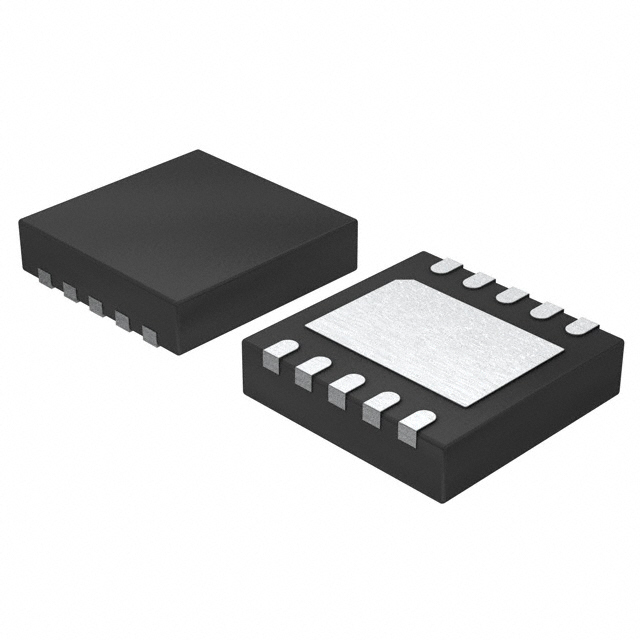

ADP7156ACPZ-3.3-R7 The ADP7156ACPZ-3.3-R7 is a linear voltage regulator IC from Analog Devices Inc. It provides a fixed 3.3V output with a 1.2A current capability.
Mfr Part #:

ADP7156ACPZ-3.3-R7

Available from 1 distributors
Mfr Name: AD
AD
The ADP7156ACPZ-3.3-R7 is a linear voltage regulator IC from Analog Devices Inc. It provides a fixed 3.3V output with a 1.2A current capability.
✓ Total Stock: 200 pcs
$ Price Range: $0.28

ADP7156ACPZ-3.3-R7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 2026 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADP7156ACPZ-3.3-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
PSRR
Supplier Device Package
Voltage Dropout (Max)
View Similar Products (0)

ADP7156ACPZ-3.3-R7 Description

Short technical summary and product information.

The ADP7156ACPZ-3.3-R7 is a linear voltage regulator IC manufactured by Analog Devices Inc. This component is designed for positive fixed output applications, delivering a stable 3.3V.



Key electrical specifications include a maximum input voltage of 5.5V and a maximum output current of 1.2A. The device exhibits a low dropout voltage of 0.17V at 1.2A and a quiescent current of 8mA. Power supply rejection ratio (PSRR) ranges from 80dB to 60dB across the 1kHz to 1MHz frequency range.



Operating within a temperature range of -40°C to 125°C, the ADP7156ACPZ-3.3-R7 is suitable for various environmental conditions. It is available in a 10-LFCSP-WD (3x3) package and is designed for surface mount applications.



This regulator is RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 Unlimited.

ADP7156ACPZ-3.3-R7 Quick Information

Product Type: Linear Voltage Regulator IC
Canonical Name: ADP7156ACPZ-3.3-R7 Linear Voltage Regulator IC
Subcategory: PMIC - Voltage Regulators - Linear

ADP7156ACPZ-3.3-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADP7156ACPZ-3.3-R7 Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADP7156ACPZ-3.3-R7 Features

  • Fixed 3.3V positive output voltage.
  • 1.2A maximum output current.
  • Low 0.17V dropout voltage at 1.2A.
  • Wide -40°C to 125°C operating temperature.
  • Surface mount 10-LFCSP-WD (3x3) package.

ADP7156ACPZ-3.3-R7 Applications

  • Suitable for power management circuits.
  • Ideal for systems requiring stable 3.3V.
  • Used in applications with moderate current needs.
  • Designed for temperature-sensitive environments.
