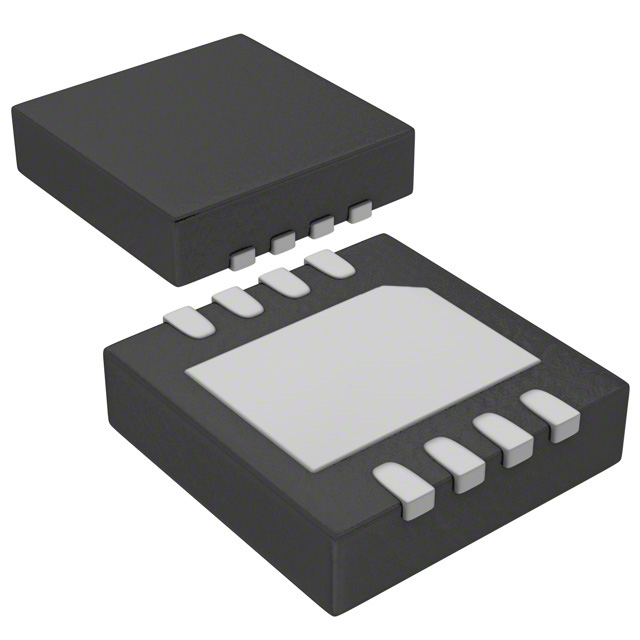

The ADP7104ACPZ-R7 is an adjustable linear voltage regulator IC manufactured by Analog Devices Inc. This component is designed for positive voltage regulation with a single output and a maximum output current capability of 500mA. It accepts an input voltage up to 20V and provides an adjustable output voltage ranging from 1.22V to 19.45V.
Key electrical characteristics include a maximum voltage dropout of 0.55V at 500mA, a quiescent current of 900 µA, and a maximum supply current of 1.6 mA. The device also offers Power Supply Ripple Rejection (PSRR) between 80dB and 50dB across a frequency range of 10kHz to 100kHz. Control features include Enable, Power Good, and Under Voltage Lockout, along with protection features for Over Temperature and Short Circuit.
This IC is available in an 8-WFDFN Exposed Pad, CSP package, suitable for surface mounting. The operating temperature range is -40°C to 125°C, making it suitable for various industrial applications. The package is supplied in Tape & Reel (TR) or Cut Tape (CT) formats.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage is 20V.
The output voltage can be adjusted from 1.22V to 19.45V.
The maximum output current is 500mA.
The operating temperature range is -40°C to 125°C.
It is supplied in an 8-WFDFN Exposed Pad, CSP package.
Control features include Enable, Power Good, and Under Voltage Lockout.
Protection features include Over Temperature and Short Circuit protection.
