The ADP5589ACBZ-02-R7 from Analog Devices is a specialized interface IC designed for keypad entry and I/O expansion applications. It features 19 configurable I/Os that support functions such as keypad decoding for matrices up to 11 × 8, GPIO, and GPO with push-pull or open-drain outputs.
This device operates from a 1.65V to 3.6V supply voltage and communicates over an I²C interface with Fast-mode Plus (Fm+) support, enabling data rates up to 1 MHz. It includes a 16-entry FIFO for event recording, an internal PWM generator, and dual programmable logic blocks.

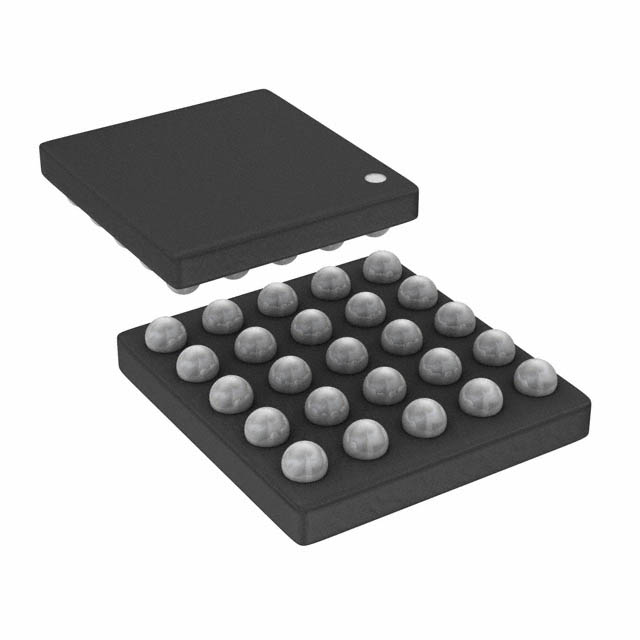

The ADP5589ACBZ-02-R7 is offered in a 25-ball WLCSP package measuring 1.99 mm × 1.99 mm, suitable for space-constrained designs. It is surface-mountable and intended for use in portable devices such as phones, remote controls, and cameras, as well as nonportable applications in healthcare and industrial equipment.
The supply voltage range is 1.65V to 3.6V.
It uses an I²C interface with Fast-mode Plus support up to 1 MHz.
It has 19 configurable I/Os.
It is available in a 25-ball WLCSP package (1.99 mm x 1.99 mm).
It is listed as RoHS3 Compliant, but this is unverified.
Yes, it includes both internal and external PWM generation.
The FIFO size is 16 entries.
