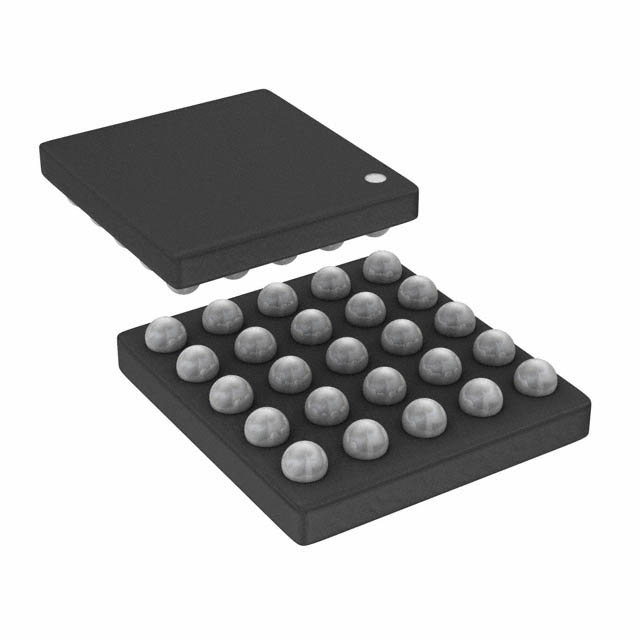

ADP5587ACBZ-R7 The ADP5587ACBZ-R7 is an 18 I/O I²C I/O expander and keypad controller from Analog Devices. It operates from 1.65V to 3.6V and features open-drain interrupt output.
Mfr Part #:

ADP5587ACBZ-R7

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADP5587ACBZ-R7 is an 18 I/O I²C I/O expander and keypad controller from Analog Devices. It operates from 1.65V to 3.6V and features open-drain interrupt output.
✓ Total Stock: 282 pcs
$ Price Range: $0.75

ADP5587ACBZ-R7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
282 pcs
On Request
282 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADP5587ACBZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Features
Interface
Interrupt Output
Mounting Type
Number of I
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

ADP5587ACBZ-R7 Description

Short technical summary and product information.

The ADP5587ACBZ-R7 is a mobile I/O expander and QWERTY keypad controller from Analog Devices. It provides 18 configurable GPIOs that can also be arranged as an 8x10 keypad matrix. Communication is via an I²C interface with clock frequency up to 400 kHz. The device operates from a supply voltage of 1.65V to 3.6V, making it suitable for low-power portable applications. Typical idle current is 1 µA, and polling current is 55 µA. An open-drain interrupt output with level programmability is included, along with a 275 µs debounce time on the reset line and GPIs. Additional features include keypad lock capability, programmable pull-ups, and a key event counter with overflow interrupt. The ADP5587ACBZ-R7 is housed in a 25-UFBGA, WLCSP package (25-WLCSP 1.97x1.97mm) with 0.4 mm lead pitch, designed for surface mount assembly. It operates over a temperature range of -40°C to 85°C.

ADP5587ACBZ-R7 Quick Information

Product Type: I/O Expander
Canonical Name: ADP5587ACBZ-R7
Subcategory: GPIO Expanders

ADP5587ACBZ-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADP5587ACBZ-R7 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADP5587ACBZ-R7 Features

  • 18 configurable GPIO or keypad matrix.
  • I²C interface up to 400 kHz.
  • Wide supply voltage 1.65V to 3.6V.
  • Ultra-low idle current of 1 µA.
  • Compact 25-WLCSP package with 0.4mm pitch.

ADP5587ACBZ-R7 Applications

  • Ideal for mobile phone keypad controllers.
  • Used in portable I/O expansion applications.
  • Suitable for QWERTY keyboard interfaces.
  • Works in low-power battery-operated devices.

ADP5587ACBZ-R7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

1.65V to 3.6V.

What is the operating temperature range?

-40°C to 85°C.

What package does the ADP5587ACBZ-R7 come in?

25-UFBGA, WLCSP (25-WLCSP 1.97x1.97mm).

Is it RoHS compliant?

RoHS3 Compliant (unverified).

What interface does it use?

I²C with clock frequency up to 400kHz.

How many I/O pins does it have?

18 I/O pins configurable as GPIO or keypad matrix.

Does it have an interrupt output?

Yes, open-drain interrupt output.
