| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,023 pcs
|
7023 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Interrupt Output | |
| Mounting Type | |
| Number of I/O | |
| Supplier Device Package | |
| Voltage |
The ADP5585ACBZ-00-R7 is a specialized interface IC from Analog Devices, designed for keypad entries and I/O expansion in portable devices. It integrates a 10-input/output port expander with a built-in keypad matrix decoder supporting up to a 5x5 matrix, a 16-element FIFO for event recording, and programmable logic block.
This device operates over a supply voltage range of 1.65V to 3.6V and communicates via an I2C interface with fast mode plus support up to 1 MHz. It includes an internal PWM generator, open-drain interrupt output, and configurable I/O pins with pull-up and pull-down resistor options.

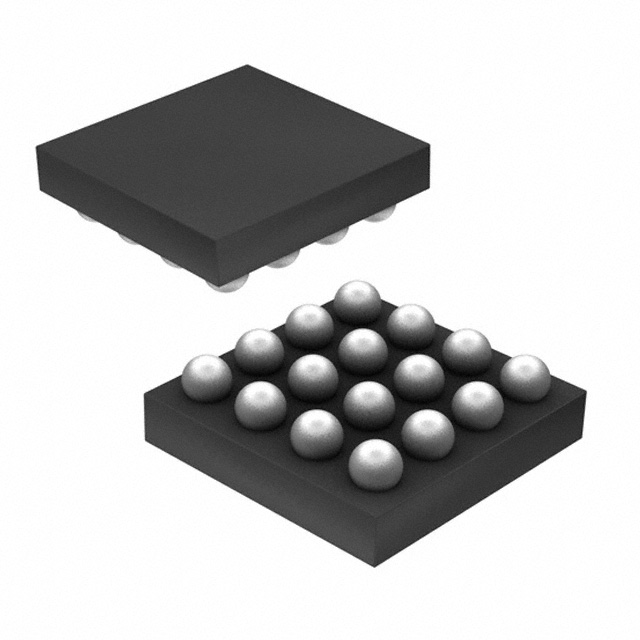

The ADP5585ACBZ-00-R7 is offered in a 16-UFBGA, WLCSP package with a supplier device package of 16-WLCSP (1.59x1.59 mm) for surface mount assembly. It is suitable for applications such as smartphones, remote controls, cameras, healthcare, industrial, and instrumentation equipment.
The supply voltage range is 1.65V to 3.6V.
It uses an I2C interface.
It has 10 I/O pins.
It is available in a 16-UFBGA, WLCSP package with a supplier device package of 16-WLCSP (1.59x1.59 mm).
Yes, it supports a keypad matrix size of up to 5x5.
It is designed for surface mount mounting.
Yes, it includes a 16-element FIFO.
