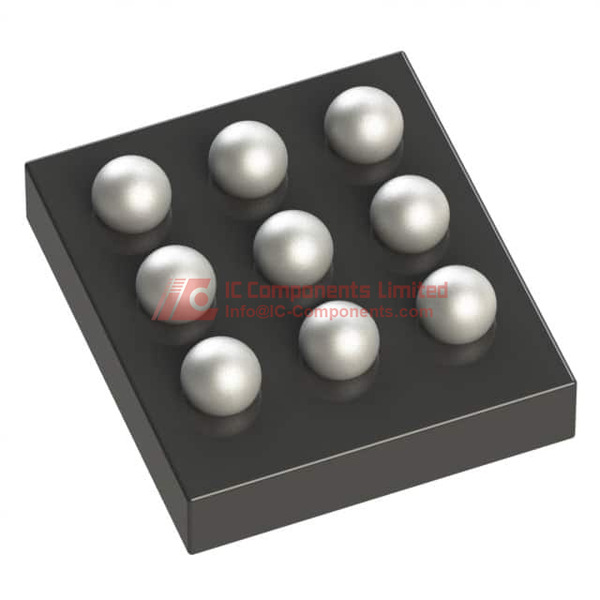

The ADP5301ACBZ-1-R7 is a DC-DC switching regulator manufactured by Analog Devices Inc. This component is designed for step-down voltage conversion, featuring a programmable output type and positive output configuration.
Key electrical specifications include an input voltage range from 2.15V to 6.5V, with a minimum fixed output voltage of 0.8V and a maximum output voltage of 5V. The device operates at a switching frequency of 2MHz and supports output currents of 50mA and 500mA. It also features a synchronous rectifier.
The regulator is designed for surface mount installation and operates within a temperature range of -40°C to 125°C (TJ). The package is a 9-WLCSP, supplied on tape and reel.
This component is suitable for various power management applications requiring efficient step-down voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 2.15V to 6.5V.
The maximum output voltage is 5V.
The switching frequency is 2MHz.
It is supplied in a 9-WLCSP package.
The operating temperature range is -40°C to 125°C (TJ).
