| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
453 pcs
|
453 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Termination Style | |
| Voltage |

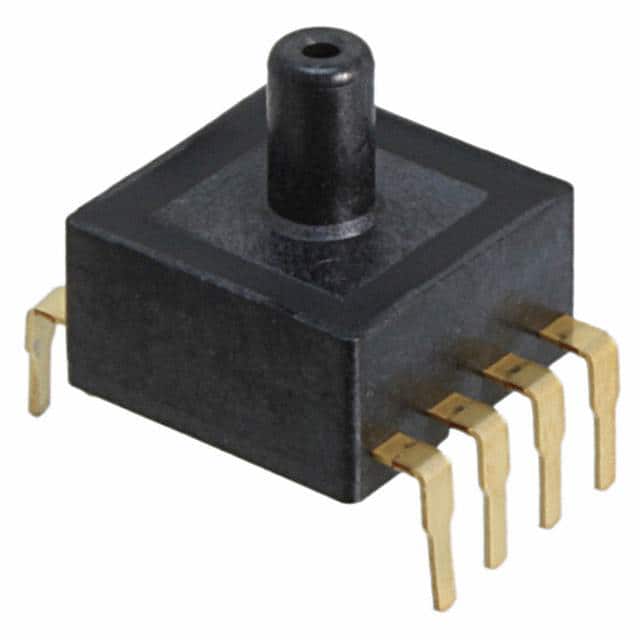

The Panasonic Electronic Components ADP51B61 is a vented gauge pressure sensor designed for board mount applications. It operates at 5V and provides an analog voltage output ranging from 0V to 5V.
This sensor has an operating pressure range of 0.87PSI (6kPa) and a maximum pressure of 1.74PSI (12kPa), with an accuracy of ±1.25%. The port is a barbless style with a 0.12" (3mm) tube connection. It is compensated for temperature and offers amplified output.
The ADP51B61 is housed in an 8-DIP module package and is mounted via Through Hole termination. It operates within a temperature range of -5°C to 50°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 0.87PSI (6kPa).
The output type is Analog Voltage, with a range of 0 V to 5 V.
The operating voltage is 5V.
The operating temperature range is -5°C to 50°C.
The ADP51B61 is mounted using the Through Hole method.
The ADP51B61 is in an 8-DIP Module package.
