| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
310 pcs
|
310 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control Features | |
| Failure Rate | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Protection Features | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Dropout (Max) |
The ADP3300ARTZ-5-REEL7 is a low dropout (LDO) linear voltage regulator manufactured by Analog Devices Inc. This component is designed to provide a stable 3.3V output voltage with a maximum output current capability of 50mA. It features a low quiescent current of 300µA and a maximum supply current of 1.7mA.
The regulator operates within an input voltage range of up to 12V and exhibits a maximum voltage dropout of 0.17V at 50mA. Protection features include over-current and over-temperature shutdown.

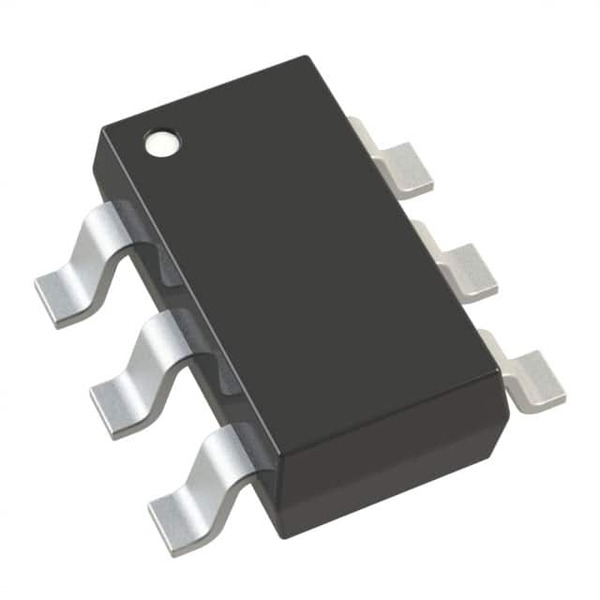

Packaged in a SOT-23-6 surface-mount case, the ADP3300ARTZ-5-REEL7 is suitable for various electronic applications requiring a reliable and efficient voltage regulation. The operating temperature range for this device is -40°C to 85°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADP3300ARTZ-5-REEL7 provides a fixed output voltage of 3.3V.
The maximum output current for the ADP3300ARTZ-5-REEL7 is 50mA.
The maximum input voltage for this device is 12V.
The voltage dropout is a maximum of 0.17V at 50mA.
The operating temperature range is -40°C to 85°C (TA).
This component is supplied in a SOT-23-6 package.
