| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,998 pcs
|
5998 pcs | On Request | 1 | On Request | On Request | 1223+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Delay Time | |
| Driven Configuration | |
| Gate Type | |
| High Side Voltage | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Output Current | |
| Rise | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The On Semiconductor ADP3121JCPZ-RL is a dual bootstrapped MOSFET driver designed for high-performance power management scenarios. It operates within a voltage range of 4.15V to 13.2V and can deliver up to 7A of output current.
Key electrical characteristics include a high side voltage capability of 35V, fast rise and fall times of 20ns, and a delay time of 35ns. The device supports synchronous operation and features a half-bridge driven configuration with N-channel MOSFET gates.

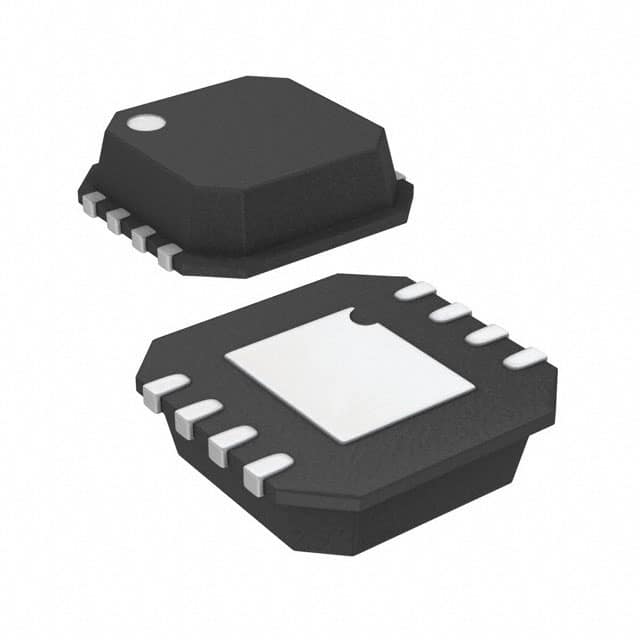

This MOSFET driver is housed in an 8-VFDFN exposed pad, CSP package and is designed for surface mount installation. It operates across a wide temperature range of 0°C to 150°C (TJ), making it suitable for demanding applications. The logic voltage levels are 0.8V and 2V.
Typical applications for this component include computer motherboards, graphics processors (GPUs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs) requiring efficient, low-voltage power supplies. Its fast transient response and high efficiency ensure stable output under dynamic load conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.15V to 13.2V
8-LFCSP (3x3)
0°C to 150°C (junction)
Low: 0.8V, High: 2V
35V
20ns each
35ns typical
