| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,578 pcs
|
1578 pcs | On Request | 1 | On Request | On Request | 1252+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology |

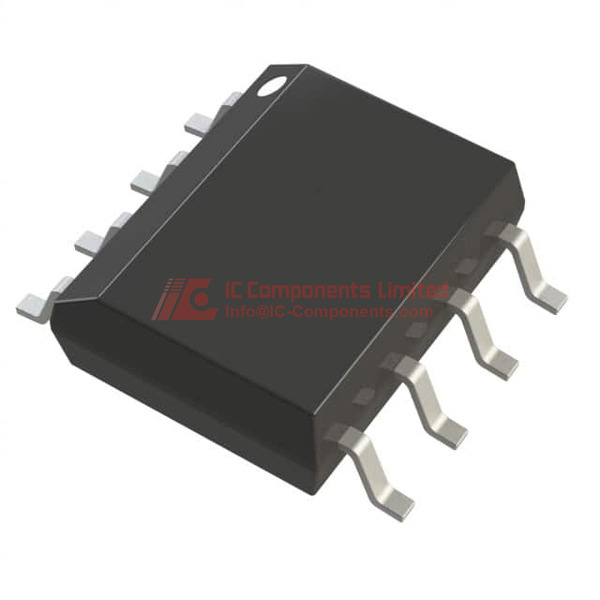

The ADP2302ARD-5.0-R7 is an adjustable DC-DC switching regulator manufactured by Analog Devices Inc. This component is designed for step-down voltage conversion, offering an output current capability of 2A.
Key electrical specifications include an input voltage range from 3V to 20V, with an adjustable output voltage ranging from 0.8V to 20V. The switching frequency is set at 700kHz, contributing to efficient power management. The device operates within a wide temperature range of -40°C to 125°C (TJ).
Packaged in an 8-SOIC-EP (Exposed Pad) format, the ADP2302ARD-5.0-R7 is designed for surface mount applications. Its RoHS3 compliant status indicates adherence to environmental regulations. This regulator is suitable for various power management applications requiring stable and adjustable voltage outputs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADP2302ARD-5.0-R7 has an output current capability of 2A.
The input voltage range for the ADP2302ARD-5.0-R7 is from 3V to 20V.
The output voltage is adjustable from 0.8V to 20V.
The switching frequency is 700kHz.
The operating temperature range is -40°C to 125°C (TJ).
It is in an 8-SOIC-EP package with an exposed pad, measuring 8-SOIC (0.154", 3.90mm Width).
It is supplied in Tape & Reel (TR).
