The ADP2139ACBZ-2.5-R7 is a synchronous step-down DC-to-DC converter manufactured by Analog Devices. It operates with an input voltage range of 2.3V to 5.5V and delivers a fixed output voltage of 2.5V, capable of supplying up to 800mA.
This converter features a high switching frequency of 3MHz, contributing to its compact solution size and fast transient response. It boasts a peak efficiency of 95% and low quiescent current of 24μA, making it suitable for power-sensitive applications. The device includes internal synchronous rectification, compensation, and soft-start circuitry, minimizing the need for external components.
Designed for small form factor applications, the ADP2139ACBZ-2.5-R7 is available in a 6-lead WLCSP package measuring 1.03mm x 1.50mm. Its surface mount capability further enhances integration into compact electronic designs. The converter also offers ultralow shutdown current of 0.2μA.
Key features include current overload and thermal shutdown protections, ensuring device reliability. It supports both forced PWM and automatic PWM/PSM modes, optimizing efficiency across different load conditions. This device is well-suited for portable electronics, PDAs, wireless handsets, and digital cameras.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.3 V to 5.5 V.
Fixed output voltage of 2.5 V with a maximum output current of 800 mA.
The switching frequency is 3 MHz.
Peak efficiency is 95%.
The operating temperature range is -40°C to +85°C (TA).

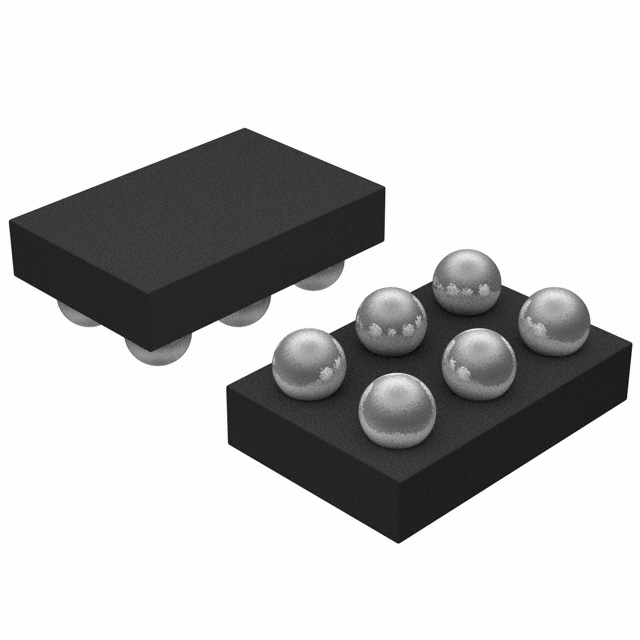

It is available in a 6-WLCSP package (1.03x1.50 mm) for surface mount.
Yes, it features synchronous rectification.
