| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
374 pcs
|
374 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
365 pcs
|
365 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Output Type | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology |
The ADP2116ACPZ-R7 from Analog Devices Inc. is a DC-DC switching regulator designed for step-down applications. It offers an adjustable and programmable output voltage, with a minimum fixed output of 0.6V and a maximum output of 5.5V. The device supports a wide input voltage range from 2.75V to 5.5V.
This regulator can handle output currents up to 6A, with configurations available for 3A/3A and 3A/2A. It operates with selectable switching frequencies of 300kHz, 600kHz, or 1.2MHz. The synchronous rectifier feature enhances efficiency.

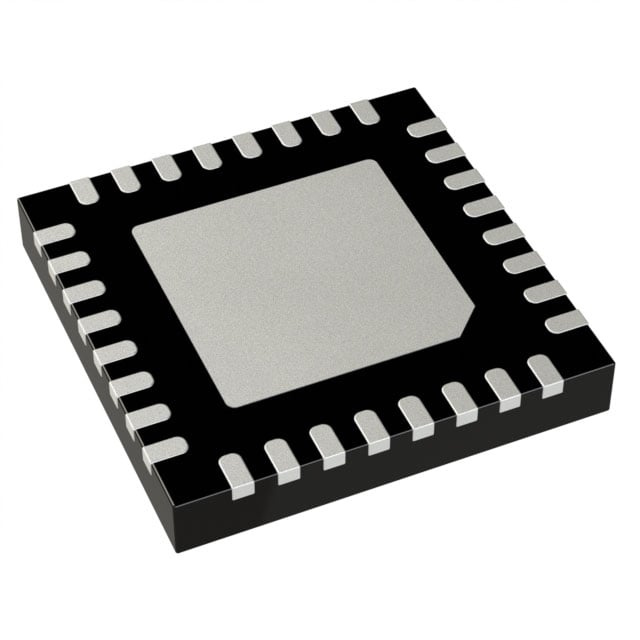

The ADP2116ACPZ-R7 is designed for surface mount installation in a 32-WFQFN Exposed Pad, CSP package. It operates within a junction temperature range of -40°C to 125°C. This component is suitable for various power management applications requiring efficient voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.75V to 5.5V.
0.6V to 5.5V, adjustable.
Up to 6A, with dual-output configurations of 3A/3A or 3A/2A.
Selectable: 300kHz, 600kHz, or 1.2MHz.
-40°C to 125°C (junction).
32-WFQFN exposed pad, CSP.
Surface mount.
