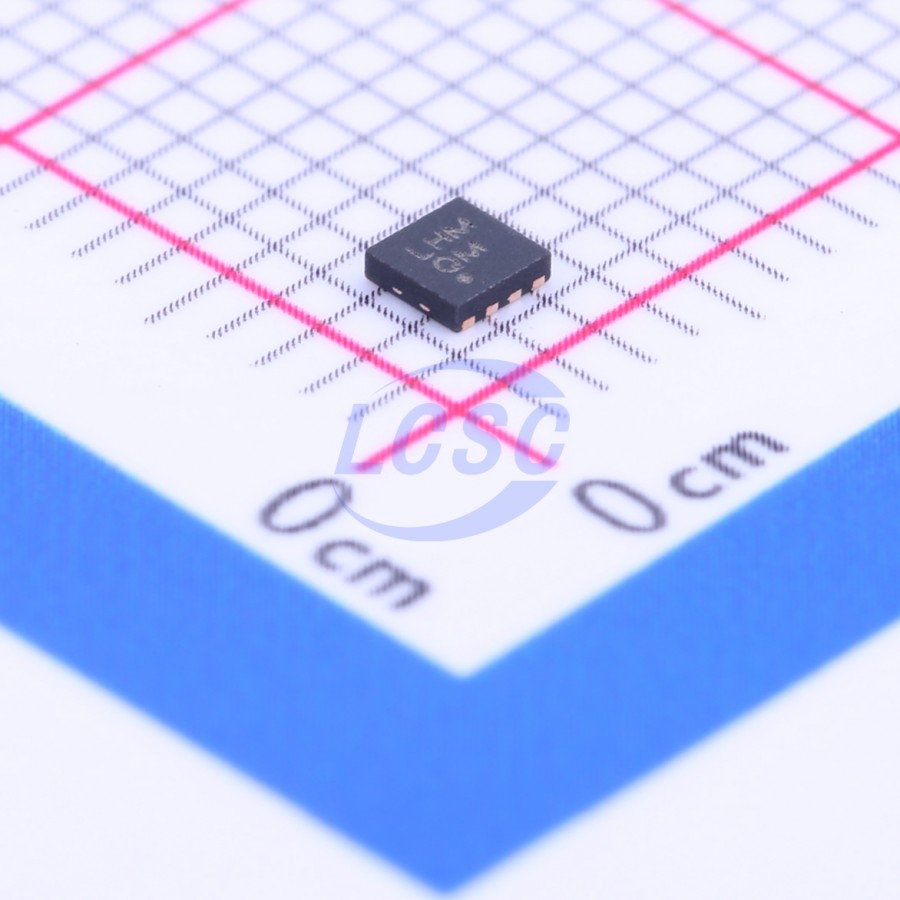

The ADP125ACPZ-R7 from Analog Devices is a low quiescent current, low dropout linear regulator designed for battery-powered applications. It operates from an input voltage range of 2.3 V to 5.5 V and can deliver up to 500 mA of output current. The regulator features a very low dropout voltage of 130 mV at a 500 mA load, which enhances efficiency and allows for a wider input voltage range.
With a low quiescent current of 45 µA, the ADP125ACPZ-R7 is ideal for portable equipment where power consumption is critical. This adjustable output version allows the output voltage to be set between 0.8 V and 5.0 V using an external voltage divider. It is designed for stable operation with small 1 µF ceramic capacitors and includes current limit and thermal overload protection.
The ADP125ACPZ-R7 is available in compact 8-lead exposed paddle MSOP and LFCSP packages, suitable for space-constrained applications. These packages offer lower thermal resistance, minimizing junction temperature rise.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage for the ADP125ACPZ-R7 is 5.5 V.
The ADP125ACPZ-R7 can provide a maximum output current of 500 mA.
The dropout voltage is 130 mV at a 500 mA load.
The quiescent current is typically 45 µA.
The adjustable output voltage range is from 0.8 V to 5.0 V.
The ADP125ACPZ-R7 is available in MSOP and LFCSP packages.
