| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The ADP122AUJZ-3.3R7 is a linear voltage regulator manufactured by Analog Devices, Inc. This component is designed to provide a stable 3.3V fixed output voltage, capable of delivering up to 300mA of current. It operates within a wide temperature range of -40°C to 125°C, making it suitable for various environmental conditions.
The device features low quiescent current of 105 µA and a maximum supply current of 240 µA. It includes protection features such as over current, over temperature, and under voltage lockout (UVLO) to ensure reliable operation. The voltage dropout is minimal at 0.15V when supplying 300mA.

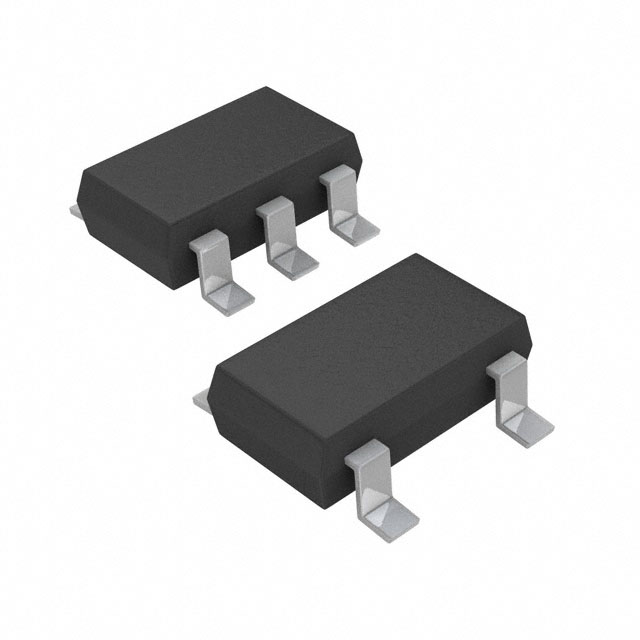

Packaged in a compact TSOT-23-5 surface-mount case, the ADP122AUJZ-3.3R7 is designed for applications where space is a constraint. Its PSRR is rated at 60dB over a frequency range of 10kHz to 100kHz, indicating good noise rejection capabilities. The maximum input voltage is 5.5V.
This regulator is suitable for power management in various electronic devices. Its fixed output and robust protection mechanisms make it a reliable choice for designers needing a straightforward and efficient voltage regulation solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADP122AUJZ-3.3R7 provides a fixed output voltage of 3.3V.
The maximum input voltage is 5.5V.
The dropout voltage is 0.15V maximum at 300mA output.
It is available in a TSOT-23-5 surface mount package.
The operating temperature range is -40°C to 125°C.
It includes over current, over temperature, and under voltage lockout (UVLO) protection.
The typical quiescent current is 105µA.
