The ADP1190ACBZ-R7 is an integrated high-side load switch featuring four normally open SPST signal switches, designed by Analog Devices for operation within a 1.4 V to 3.6 V input voltage range. This component provides essential power domain isolation, contributing to extended battery life in portable devices.
The load switch utilizes a low on-resistance P-channel MOSFET, capable of handling up to 500 mA of continuous load current while minimizing power loss. Its RdsOn is specified as 60 mΩ at 3.6 V for the load switch and 2 Ω at 1.8 V for the signal switches. The device also includes built-in level shifting for control logic, allowing operation with 1.2 V logic, and boasts an ultralow shutdown current of less than 0.7 μA.

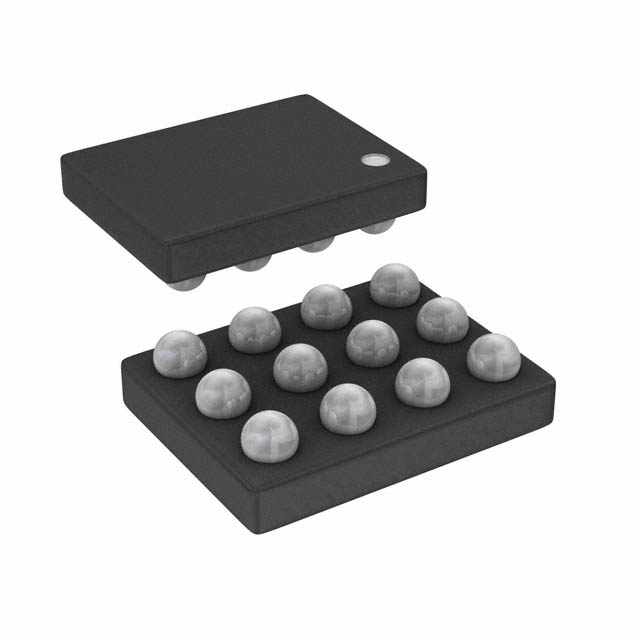

Designed for space-constrained applications, the ADP1190ACBZ-R7 is housed in an ultrasmall 1.2 mm × 1.6 mm, 12-ball, 0.4 mm pitch WLCSP package, occupying a PCB area of less than 1.92 mm² with a height of 0.50 mm. Its operating temperature range is -40°C to 125°C (TJ).
Key applications include mobile phones, SIM card disconnect switches, digital cameras, audio devices, and other portable, battery-powered equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.4V to 3.6V.
12-WLCSP (1.2x1.6mm) surface mount package.
-40°C to 125°C (junction temperature).
500 mA.
60 mΩ at 3.6V.
Less than 0.7 μA.
5 outputs (4 signal).
