| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
227 pcs
|
227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

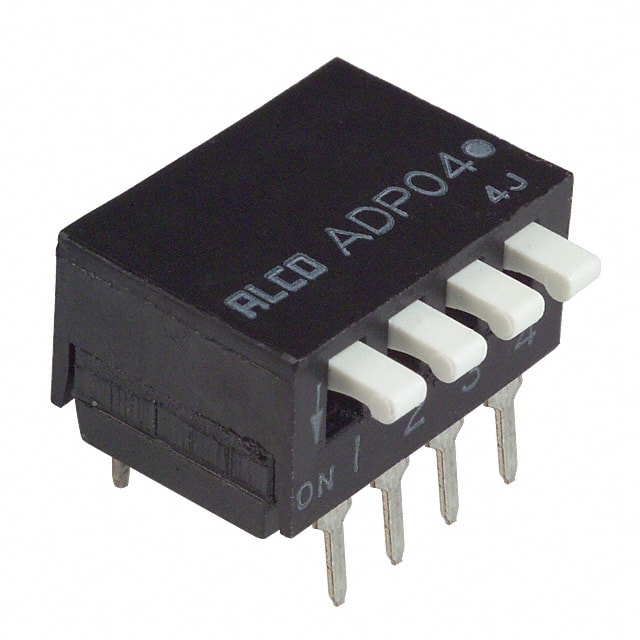

The TE Connectivity ADP04 is a Piano DIP Switch designed for through-hole mounting at a right angle. This switch features a Single Pole Single Throw (SPST) circuit configuration and a piano-style actuator.
Key electrical specifications include a voltage rating of 24VDC and a current rating of 25mA. The contact finish is gold over a copper alloy contact material. The pitch is 2.54mm (0.100"). The operating temperature range is from -30°C to 85°C.
This component is washable and has a moisture sensitivity level of 1. The mounting type is through-hole, suitable for right-angle PCB placement. The actuator level is raised.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the ADP04 DIP Switch is 24VDC.
The current rating of the TE Connectivity ADP04 is 25mA.
The operating temperature range for this DIP Switch is -30°C to 85°C.
The ADP04 DIP Switch is mounted through hole at a right angle.
The ADP04 has a piano actuator.
