| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Voltage Range |

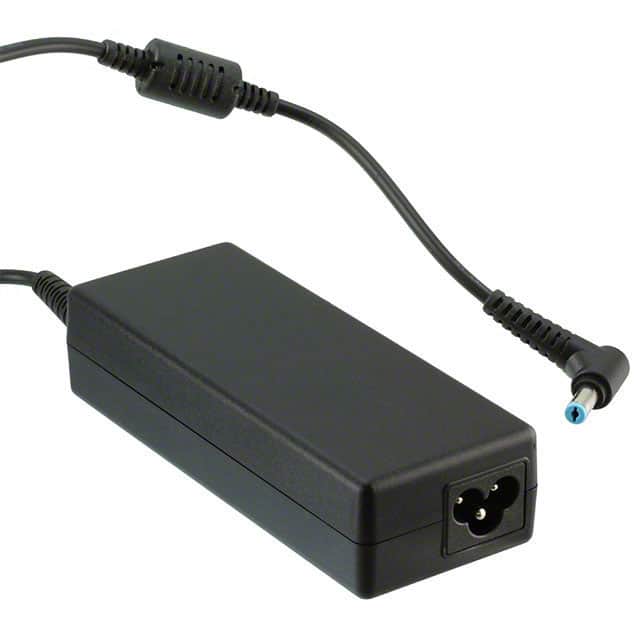

The Delta Electronics ADP-90MD HDM is a 90W AC/DC external desktop power adapter designed for commercial ITE applications. It operates with an input voltage range of 90-264VAC and provides a stable 19Vdc output at a maximum current of 4.74A.
This adapter features a Level VI energy efficiency rating, ensuring reduced power consumption. Key electrical specifications include a low no-load power consumption of 210mW maximum and a leakage current of less than 75uA at 240Vac/50Hz. It is equipped with an IEC 320-C6 input connector and a Barrel Plug R/A output connector (1.7mm I.D. x 5.5mm O.D. x 11.0mm).
Designed for reliability, the ADP-90MD HDM operates within a temperature range of 0°C to 40°C and has undergone various safety and immunity tests, including lightning surge, EFT, and ESD. Its dimensions are 127.0mm x 51.0mm x 30.5mm, and it comes with a 1.80m cord. The adapter is classified as Class I and is CB, CE, and cULus approved.
90-264Vac.
0°C to 40°C.
19Vdc.
4.74A.
90W.
127.0mm x 51.0mm x 30.5mm.
47-63Hz.
