| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Voltage Range |

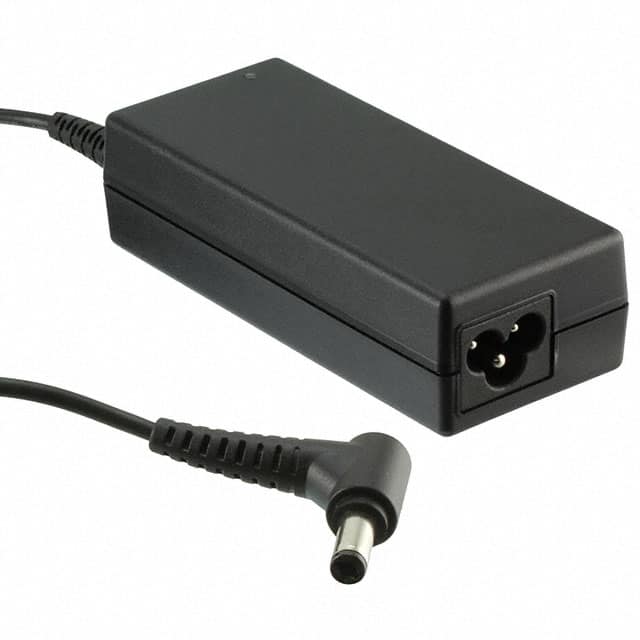

The Delta Electronics ADP-65JH HBAN is an AC/DC desktop power adapter designed for commercial ITE applications. It delivers a 19V output at a maximum current of 3.42A, providing a total power of 65W.
This adapter operates within a wide input voltage range of 90-264VAC and features a nominal input frequency of 50-60Hz. It boasts Level VI energy efficiency and a low no-load power consumption of less than 210mW. The unit includes over-voltage, overload, over-temperature, and short-circuit protections for enhanced safety.
Designed for reliability, the ADP-65JH HBAN has a typical MTBF of 100,000 hours. It features an IEC 320-C6 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The adapter's dimensions are 108.0mm x 46.0mm x 29.5mm, and it comes with a 1.80m cord.
Compliance certifications include CB, CE, and cULus. The adapter operates within a temperature range of 0°C to 40°C and is RoHS3 compliant.
The ADP-65JH HBAN adapter has a rated output voltage of 19V and a maximum output current of 3.42A.
The input voltage range for the ADP-65JH HBAN is 90-264VAC.
The ADP-65JH HBAN adapter has a power rating of 65W.
The operating temperature range for the ADP-65JH HBAN adapter is 0°C to 40°C.
Yes, the ADP-65JH HBAN meets Energy Star Level VI efficiency standards.
