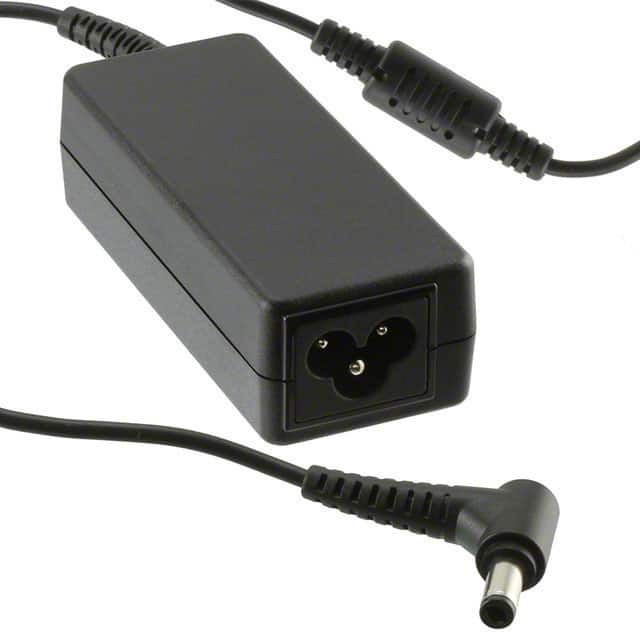

ADP-40KD BBBM

The Delta Electronics ADP-40KD BBBM is a 40W AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 19V output at 2.1A, making it suitable for various electronic devices.

This adapter features a universal input voltage range of 90-264Vac and operates at nominal frequencies of 50-60Hz. It boasts Level VI Energy Star compliance, indicating high energy efficiency, with an active mode efficiency exceeding 88% at 115Vac. The no-load power consumption is kept to a minimum, below 0.1W at 115Vac/60Hz.

Designed for safety and reliability, the ADP-40KD BBBM includes over-voltage, over-load, over-temperature, and short-circuit protections. It has achieved CB, CE, and cULus safety approvals, ensuring worldwide usability. The adapter utilizes an IEC 320-C6 input connector and comes with a 70.9" (1.80m) cord, sold separately. The output connector is a Barrel Plug R/A with a 2.5mm I.D. x 5.5mm O.D. x 12.5mm size and positive center polarization.

Environmental specifications include an operating temperature range of 0°C to 40°C and operating humidity of 8% to 90% RH (Non-Condensing). The unit is built to withstand electrical disturbances, featuring lightning surge immunity up to 2KV and compliance with IEC standards for EFT and ESD.
