| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

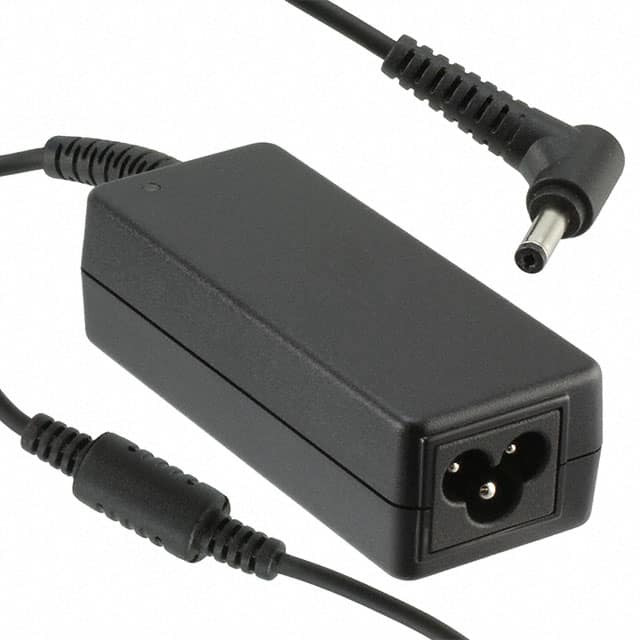

The Delta Electronics ADP-36PH BH is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12V DC output with a maximum current of 3A, providing a total power of 36W.
The adapter features a wide input voltage range of 90-264V AC, making it suitable for international use. It complies with Energy Star Level VI efficiency standards, ensuring reduced energy consumption. Key electrical specifications include a typical active mode efficiency of 86.38% at 115V AC and 84.78% at 230V AC, with a low no-load power consumption of less than 0.1W.
Designed for reliability, the ADP-36PH BH includes over-voltage, over-load, over-temperature, and short-circuit protections. It operates within a temperature range of 0°C to +45°C and offers a Mean Time Between Failures (MTBF) of 100,000 hours. The unit has a compact desktop form factor (Class I) with dimensions of 89.5mm x 37.0mm x 26.5mm.
Connectivity is provided via an IEC 320-C6 input connector and a 1.7mm I.D. x 4.75mm O.D. x 12.0mm barrel plug output connector with positive center polarization. The associated cord length is 1.80m (70.9").
The output voltage is 12V DC.
The input voltage range is 90-264V AC.
It includes over-voltage, over-load, over-temperature, and short circuit protections.
The operating temperature range is 0°C to 45°C.
Active mode efficiency is 86.38% at 115V AC and >84.78% at 230V AC, meeting Energy Star Level VI.
It is a desktop (Class I) adapter.
The MTBF is 100,000 hours.
