| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Rated Voltage | |
| Region Utilized | |
| Voltage | |
| Voltage Range | |
| Width |

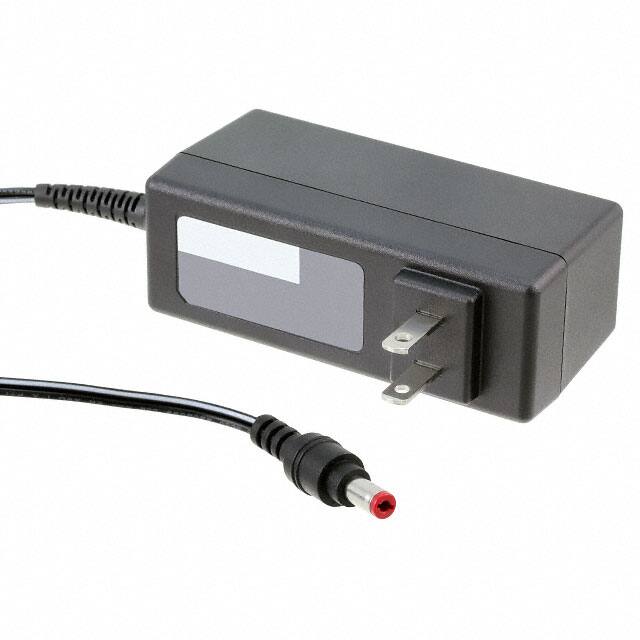

The Delta Electronics ADP-25FW BB is a versatile AC/DC wall mount power adapter designed for ITE (Commercial) applications. It delivers a stable 12Vdc output at up to 2.1A, providing a total of 25W of power.
This adapter features a wide input voltage range of 90-264Vac, making it suitable for global use, and complies with Energy Star Level VI efficiency standards. The input connector is a standard NEMA 1-15P, and the output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center.
Designed for convenience, the ADP-25FW BB has a compact form factor with dimensions of 102.0mm x 36.8mm x 49.0mm and includes a 1.50m cord. It operates within a temperature range of 0°C to 40°C and meets stringent environmental and safety approvals for commercial use.
The ADP-25FW BB adapter provides a 12Vdc output voltage at a current of up to 2.1A.
The adapter accepts an input voltage range of 90-264Vac.
The ADP-25FW BB adapter meets Energy Star Level VI efficiency standards.
It uses a barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. and a length of 10.5mm.
The adapter can operate in temperatures ranging from 0°C to 40°C.
The adapter has a minimum MTBF of 100,000 hours.
