| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The ADN8833ACBZ-R7 from Analog Devices is a monolithic H-bridge TEC driver designed for digital control systems. It integrates 1A power MOSFETs and offers features like a 2 MHz PWM driver switching frequency and a 2.50V reference output with 1% accuracy.
This device is suitable for applications requiring precise temperature control, such as optical modules, optical fiber amplifiers, and general instruments. It supports a wide operating voltage range of 2.7V to 5.5V and operates across a temperature spectrum from -40°C to 125°C.

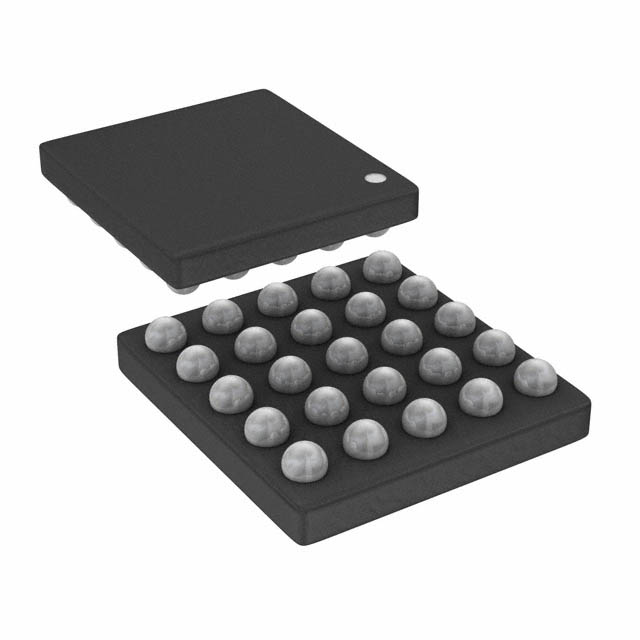

The ADN8833ACBZ-R7 is available in a 25-ball WLCSP package, measuring 2.5 mm × 2.5 mm, and is designed for surface mount applications. Its patented high-efficiency single inductor architecture and integrated low RDSON MOSFETs contribute to its performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7 V to 5.5 V.
25-WFBGA, WLCSP (25-WLCSP 2.54x2.54 mm).
-40°C to 125°C.
2 MHz.
2.5 V with 1% accuracy.
2.1 mA.
Surface Mount.
