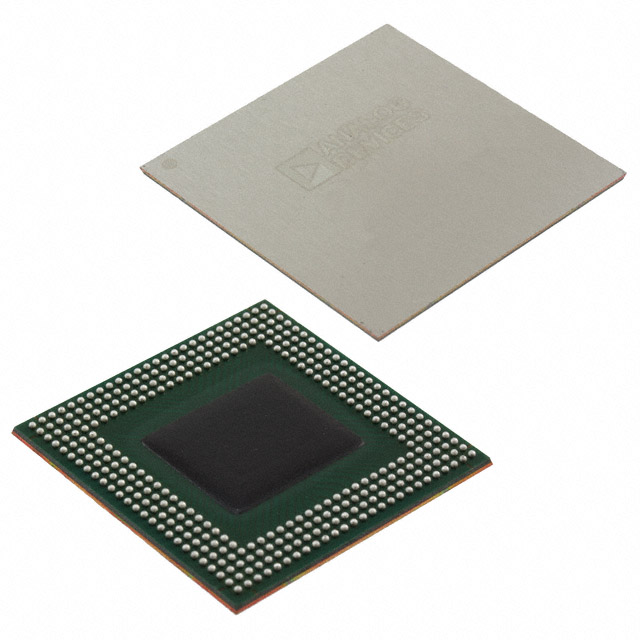

The ADN4605ABPZ from Analog Devices is a 40x40 asynchronous, protocol-agnostic digital crosspoint switch. It features 40 differential PECL/CML-compatible inputs and 40 differential programmable CML outputs, optimized for NRZ signaling with data rates up to 4.25 Gbps per port.
Key electrical specifications include adjustable receive equalization (3 dB, 6 dB, or 12 dB boost) and programmable transmit preemphasis/deemphasis, compensating over 40 inches of FR4 at 4.25 Gbps. The device operates with a flexible supply voltage range of 2.5 V to 3.3 V and offers low power consumption of 105 mW per channel at 2.5 V. It boasts low jitter, typically less than 25 ps, and supports various data encoding schemes including 8b10b, scrambled, or uncoded NRZ data.
This crosspoint switch is suitable for applications such as digital video (HDMI, DVI, DisplayPort, 3G/HD/SD-SDI), high-speed serial backplane routing, and data storage networks. It includes serial (I2C slave or SPI) and parallel control interfaces for ease of use.
The ADN4605ABPZ is available in a 352-BGA Exposed Pad package and is designed for surface mounting. It operates within an industrial temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate per port for the ADN4605ABPZ is 4.25 Gbps NRZ.
The ADN4605ABPZ supports a flexible supply voltage range of 2.5 V to 3.3 V.
The operating temperature range for the ADN4605ABPZ is -40°C to 85°C.
The ADN4605ABPZ is a surface mount device.
The ADN4605ABPZ is supplied in a 352-LBGA Exposed Pad package.
The ADN4605ABPZ is a 40x40 digital crosspoint switch.
