| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Filter Type | |
| Frequency | |
| Height (Max) | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Operating Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Width |
The ADMV8913SCCZ-EP-R2 is a fully monolithic microwave integrated circuit (MMIC) that integrates a digitally tunable high-pass filter (HPF) and low-pass filter (LPF) for X band operation. The device allows independent 4-bit digital control (16 states each) of the 3 dB cutoff frequencies of both filters, enabling flexible pass-band response. Key electrical specifications include a center frequency of 9.25GHz, a bandwidth of 5.3GHz, typical insertion loss of 5.3dB, and wideband rejection of 35dB.

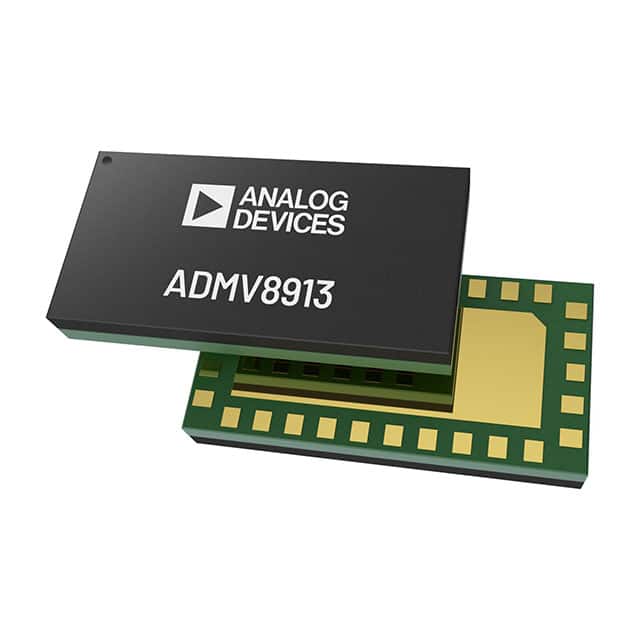

The filter is housed in a compact 30-VFLGA surface mount package measuring 6.00mm x 3.00mm x 0.89mm, suitable for space-constrained designs. It supports a military temperature range of -55°C to +105°C, making it ideal for defense and aerospace applications. The device is designed for test and measurement equipment, military radar, electronic warfare, satellite communications, and industrial/medical equipment.
As an enhanced product (EP), it features controlled manufacturing baseline, single assembly/test site, and qualification data available on request. The part is listed as RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 250+ | $101.52 | $101.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device is housed in a 30-VFLGA surface mount package measuring 6.00mm x 3.00mm x 0.89mm.
-55°C to +105°C (military temperature range).
It is listed as RoHS3 compliant, but this is unverified.
Typical insertion loss is 5.3dB.
The bandwidth is 5.3GHz.
The center frequency is 9.25GHz.
Each filter (HPF and LPF) has 4-bit digital control, providing 16 states.
