| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,230 pcs
|
1230 pcs | On Request | 1 | On Request | On Request | 21+23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conversion Gain | |
| Frequency | |
| Function | |
| I/Q Amplitude Imbalance | |
| I/Q Phase Imbalance | |
| IF Frequency | |
| Image Rejection | |
| Input IP2 | |
| Input IP3 | |
| Input P1dB | |
| LO Leakage at RFIN | |
| Mounting Type | |
| Noise Figure | |
| Operating Temperature | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel |

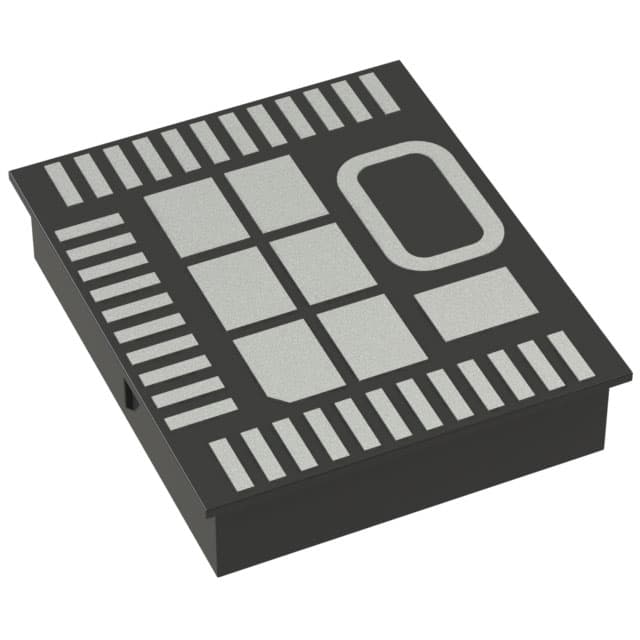

The ADMV7420BCEZ is a fully integrated System in Package (SiP) designed as a phase/quadrature (I/Q) downconverter. It operates within the E-band, with a radio frequency (RF) input range of 81 GHz to 86 GHz and an intermediate frequency (IF) output range from DC to 2 GHz. This device provides a small signal conversion gain of 10 dB and features 30 dBc of image rejection.
The ADMV7420BCEZ utilizes a low noise amplifier followed by an image rejection mixer driven by a 6x local oscillator (LO) multiplier. It offers differential I and Q mixer outputs suitable for direct conversion applications. The device comes in a 34-terminal, 11 mm x 13 mm LGA_CAV package, designed for surface mounting. It operates over a case temperature range of -40°C to +85°C.
Key electrical specifications include a typical noise figure of 5 dB, input IP3 of 1 dBm, input IP2 of 26 dBm, and input P1dB of -5 dBm. The I/Q amplitude imbalance is 0.5 dB typical, and the I/Q phase imbalance is 5° typical. LO leakage at RFIN is less than -55 dBm typical.
Applications for the ADMV7420BCEZ include E-band communication systems, high-capacity wireless backhauls, test and measurement equipment, and aerospace and defense systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADMV7420BCEZ operates from 81 GHz to 86 GHz.
The typical conversion gain is 10 dB.
The typical noise figure is 5 dB.
It is in a 34-terminal, 11 mm x 13 mm LGA_CAV package.
The mounting type is Surface Mount.
The operating case temperature range is -40°C to +85°C.
