| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
353 pcs
|
353 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Reset Timeout | |
| Supply Current | |
| Voltage |
The ADM809LART is a supervisory circuit from Analog Devices, Inc. that monitors power supply voltages in microprocessor systems. It provides a reset output during power-up, power-down, and brownout conditions. The device features an operating voltage range of 1.0 V to 5.5 V and consumes a low supply current of up to 60 μA.
Key specifications include a reset voltage threshold of 4.56 V to 4.70 V for the ADM8_L variant at 25°C and a minimum reset timeout of 140 ms. The ADM809LART is suitable for applications requiring reliable power monitoring and reset generation.

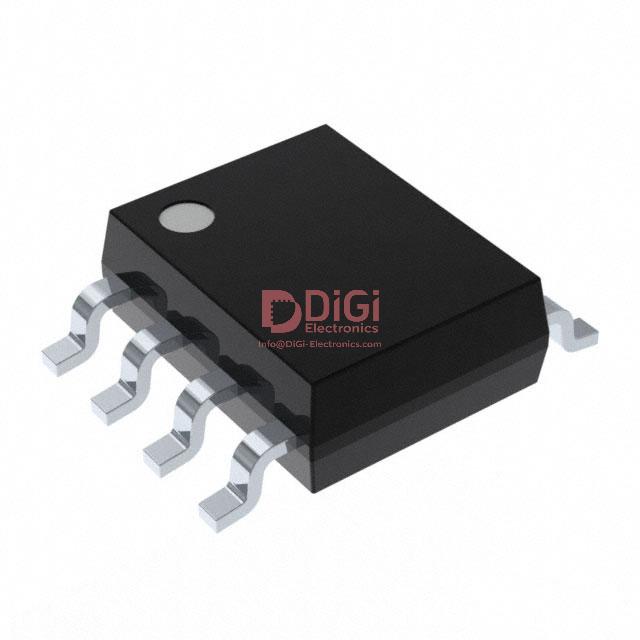

This supervisor IC is available in a surface-mount 8-SOIC package, facilitating integration into compact electronic designs. Its operating temperature range is -40°C to 85°C (TA), making it suitable for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.0V to 5.5V.
Maximum 60 µA at VCC < 5.5V, TA = -40°C to +85°C.
4.56V minimum, 4.63V typical, 4.70V maximum at TA = 25°C for the ADM8_L variant.
140 ms minimum.
-40°C to 85°C.
8-SOIC surface-mount package.
Yes, the MAX709LESA+ from Analog Devices Inc./Maxim Integrated is listed as a substitute.
