| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
218 pcs
|
218 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |

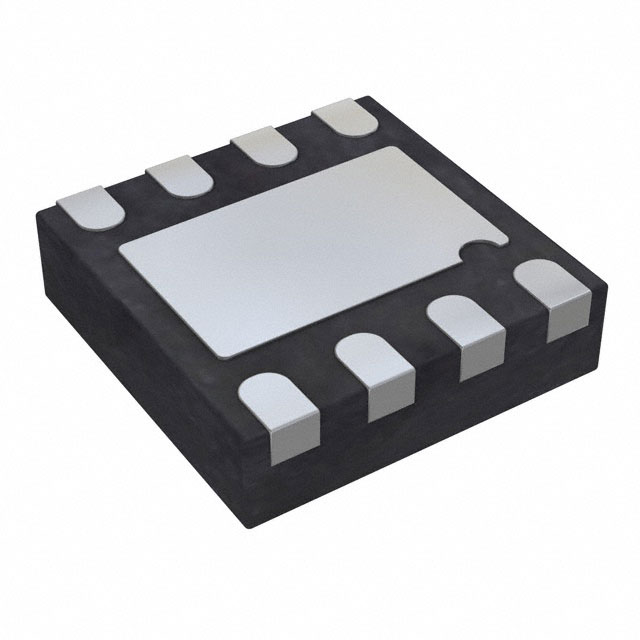

The ADM7170ACPZ-3.3-R7 is a linear voltage regulator IC manufactured by Analog Devices Inc. This component is designed to provide a stable positive fixed output voltage of 3.3V, capable of delivering up to 500mA of output current. It operates with a maximum input voltage of 6.5V and features a quiescent current of 2mA and a maximum supply current of 5.1mA.
The device is suitable for surface mount applications and comes in an 8-LFCSP-WD (3x3) package, also described as 8-WFDFN Exposed Pad, CSP. The operating temperature range is from -40°C to 125°C. Environmental compliance includes RoHS3 status.
This regulator is part of the PMIC category, specifically for linear voltage regulation. Its specifications make it suitable for various power management applications where a reliable and fixed voltage supply is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 3.3V.
The maximum input voltage is 6.5V.
The maximum output current is 500mA.
The typical quiescent current is 2mA.
It comes in an 8-WFDFN Exposed Pad, CSP package, also known as 8-LFCSP-WD (3x3).
The operating temperature range is -40°C to 125°C.
