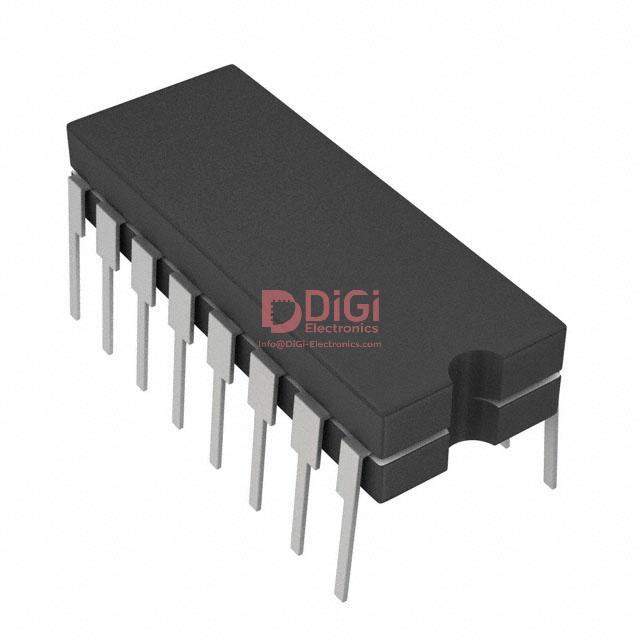

ADM691AQ The ADM691AQ from Analog Devices Inc. is a supervisor IC. It features a 4.65V threshold and a 140ms reset timeout.
Mfr Part #:

ADM691AQ

Available from 1 distributors
Mfr Name: AD
AD
The ADM691AQ from Analog Devices Inc. is a supervisor IC. It features a 4.65V threshold and a 140ms reset timeout.
✓ Total Stock: 22 pcs
$ Price Range: $1.36

ADM691AQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADM691AQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Output
Reset
Reset Timeout
Supplier Device Package
View Similar Products (0)

ADM691AQ Description

Short technical summary and product information.

The ADM691AQ is a supervisor integrated circuit manufactured by Analog Devices Inc. This component is designed for monitoring voltage levels and ensuring system stability.



Key electrical specifications include a voltage threshold of 4.65V and a reset timeout period of 140ms. The output stage is configured as Push-Pull, Totem Pole, suitable for various control applications. It monitors a single voltage.



This device is designed for through-hole mounting, making it suitable for traditional PCB assembly processes. The operating temperature range spans from -55°C to 125°C, ensuring reliable performance in diverse environmental conditions. The package is a 16-CDIP with a 0.300" (7.62mm) lead spacing.

ADM691AQ Quick Information

Product Type: Supervisor
Canonical Name: ADM691AQ Supervisor
Subcategory: Supervisor

ADM691AQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADM691AQ Estimated Pricing

Qty Low High
1+ $1.36 $1.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADM691AQ Features

  • Monitors a single voltage level.
  • Features a 4.65V threshold.
  • Provides a 140ms reset timeout.
  • Push-Pull, Totem Pole output.
  • Designed for through-hole mounting.

ADM691AQ Applications

  • Used in power supply reset circuits
  • Suitable for industrial system monitoring
  • Provides system reset control
  • Ideal for automotive electronics

ADM691AQ FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage threshold for the ADM691AQ?

The voltage threshold for the ADM691AQ is 4.65V.

What is the reset timeout duration?

The reset timeout duration is 140ms.

What type of output does the ADM691AQ have?

The ADM691AQ has a Push-Pull, Totem Pole output.

What is the minimum operating temperature?

The minimum operating temperature is -55°C.

How is the ADM691AQ mounted?

The ADM691AQ is mounted using the Through Hole method.
