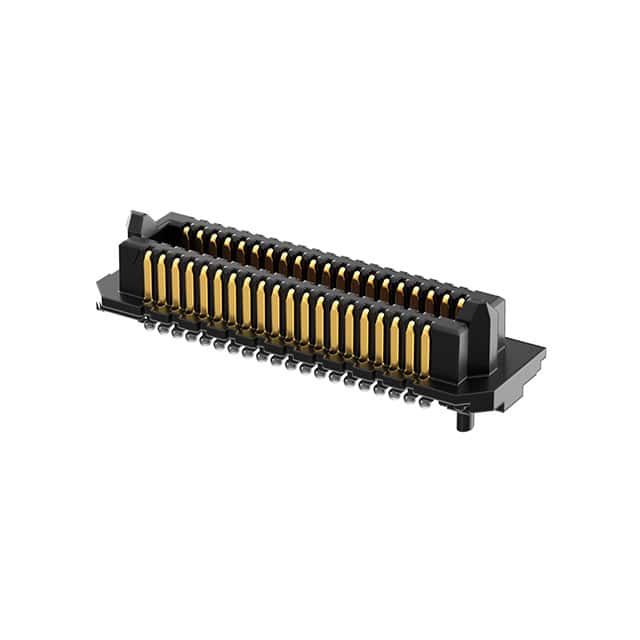

The ADM6-20-01.5-L-4-2-A-TR is a high-density array header from Samtec's AcceleRate HD series. It has 80 positions arranged in 4 rows of 20, with a 0.635mm (0.025") pitch, enabling compact board-to-board connections. The connector uses a surface mount interface with a 1.5mm lead style, and is supplied in tape and reel packaging.
Electrical ratings include 1.34 A per pin (4 pins powered) and a working voltage of 155 VAC / 219 VDC. The header supports data rates up to 64 Gbps PAM4 (32 Gbps NRZ) and is PCIe 6.0/CXL 3.1 capable. The operating temperature range is -55°C to +125°C.
The insulator is made of black LCP, and contacts are copper alloy with 10µin gold plating. The connector includes a board guide feature for alignment. The part is lead-free solderable and RoHS3 compliant (unverified). Application areas include high-speed data center, networking, and telecom equipment where high density and signal integrity are critical.
80 positions, arranged in 4 rows of 20 positions per row.
0.64mm (0.025 inches).
1.34 A per pin (4 pins powered).
155 VAC and 219 VDC maximum.
Surface mount (SMD).
Up to 64 Gbps PAM4 (32 Gbps NRZ).
Yes, the connector is PCIe 6.0 and CXL 3.1 capable.
