| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Voltage Supply |

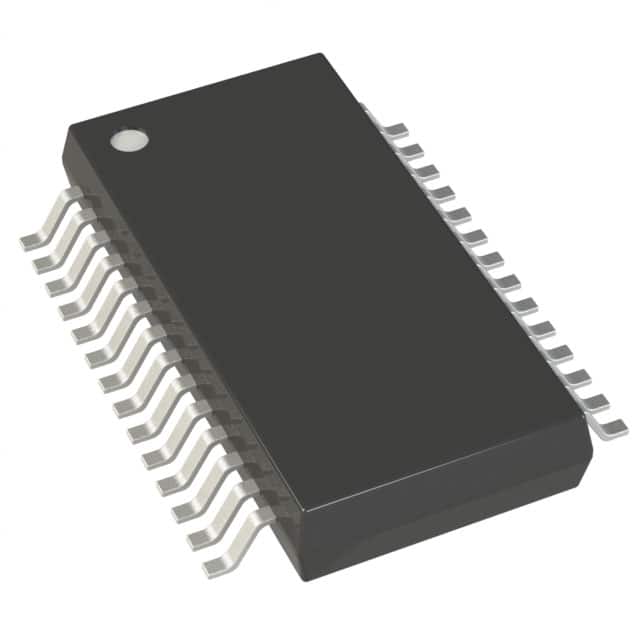

The ADM561JRS-REEL is a transceiver IC manufactured by Analog Devices, Inc. This component is designed for interface applications and supports the RS232 protocol. It features 4 drivers and 5 receivers, operating with a supply voltage range of 3V to 3.6V. The transceiver has a data rate of 116Kbps and a receiver hysteresis of 300mV.
This device is available in a 28-SSOP surface mount package. The operating temperature range is from 0°C to 70°C. Its full duplex capability makes it suitable for various communication systems requiring reliable data transmission.
Key specifications include a 3V to 3.6V operating voltage, 116Kbps data rate, and 300mV receiver hysteresis. The 4/5 driver/receiver configuration and RS232 protocol support are critical for its intended applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 3.6V.
The data rate is 116Kbps.
The operating temperature range is 0°C to 70°C.
It comes in a 28-SSOP surface mount package.
It has 4 drivers and 5 receivers.
Yes, it supports full duplex communication.
It uses the RS232 protocol.
