| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Mounting Type | |
| Protocol | |
| Receiver Hysteresis | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel |
The ADM3101EACPZ-REEL is a high-speed, single-channel RS-232 transceiver from Analog Devices Inc., designed to operate from a single 3.3V power supply. It meets EIA/TIA-232E and ITU-T V.28 specifications, making it suitable for general-purpose RS-232 data links and industrial/telecommunications diagnostics ports.
This transceiver supports data rates of up to 460 kbps. All RS-232 and CMOS inputs and outputs are protected against electrostatic discharges (ESD) up to ±15 kV. This robust ESD protection makes the ADM3101EACPZ-REEL ideal for electrically harsh environments or applications where RS-232 cables are frequently connected or disconnected.

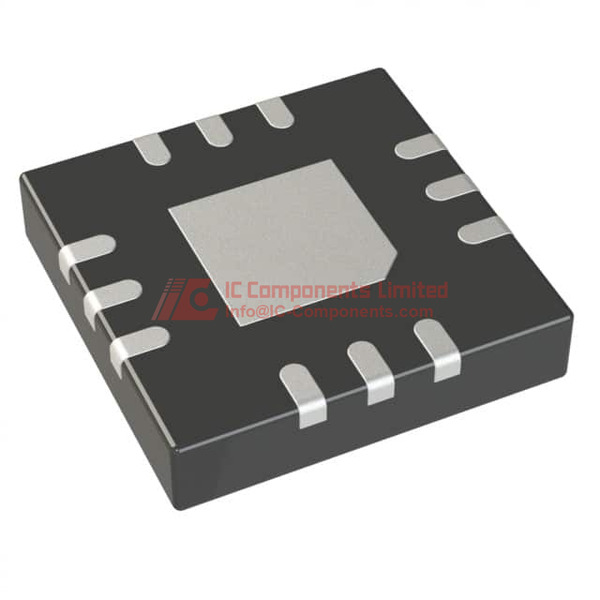

The device utilizes four external 0.1 μF charge pump capacitors for voltage doubling and inversion, enabling operation from a single 3.3V supply. It is available in a 12-lead LFCSP package and specified for operation over a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADM3101EACPZ-REEL supports data rates up to 460 kbps.
The ADM3101EACPZ-REEL offers ±15 kV ESD protection for air gap discharge and ±8 kV for contact discharge.
The ADM3101EACPZ-REEL operates from a single 3.3V power supply.
The operating temperature range for the ADM3101EACPZ-REEL is -40°C to +85°C.
The ADM3101EACPZ-REEL is available in a 12-lead LFCSP package.
The ADM3101EACPZ-REEL is RoHS3 Compliant.
