| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Protocol | |
| Receiver Hysteresis | |
| SVHC Present | |
| Tape & Reel | |
| Type |

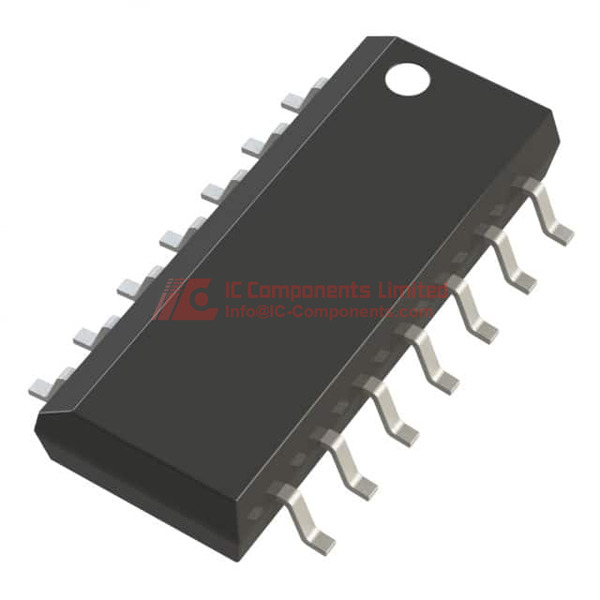

This ADM3076EYRZ-REEL7 is a transceiver manufactured by Analog Devices Inc. It is designed for full-duplex communication and operates within a voltage supply range of 3V to 3.6V. The device supports RS422 and RS485 communication protocols, making it suitable for various industrial and data communication applications.
Key electrical characteristics include a data rate of 16Mbps and receiver hysteresis of 100mV. The transceiver features 1 driver and 1 receiver. It is housed in a 14-SOIC package and is designed for surface mount installation.
The operating temperature range for this component is -40°C to 125°C, ensuring reliable performance in demanding environments. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 (Unlimited).
This transceiver is ideal for applications requiring robust serial communication interfaces. Its surface mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 3.6V.
It supports data rates up to 16Mbps.
The operating temperature range is -40°C to 125°C.
It comes in a 14-SOIC surface-mount package.
It supports RS422 and RS485 protocols.
It has 1 driver and 1 receiver.
The receiver hysteresis is 100mV.
