ADM232AAN The Analog Devices ADM232AAN is a high-speed RS-232 line driver and receiver IC. It operates from a single 5V supply and offers a transmission rate of up to 200 kB/s.
Mfr Part #:

ADM232AAN

Available from 1 distributors
Mfr Name: AD
AD
The Analog Devices ADM232AAN is a high-speed RS-232 line driver and receiver IC. It operates from a single 5V supply and offers a transmission rate of up to 200 kB/s.
✓ Total Stock: 16 pcs
$ Price Range: $2.01

ADM232AAN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
16 pcs
16 pcs On Request 1 On Request On Request On Request On Request On Request

ADM232AAN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Storage Temperature
Tape & Reel

ADM232AAN Description

Short technical summary and product information.

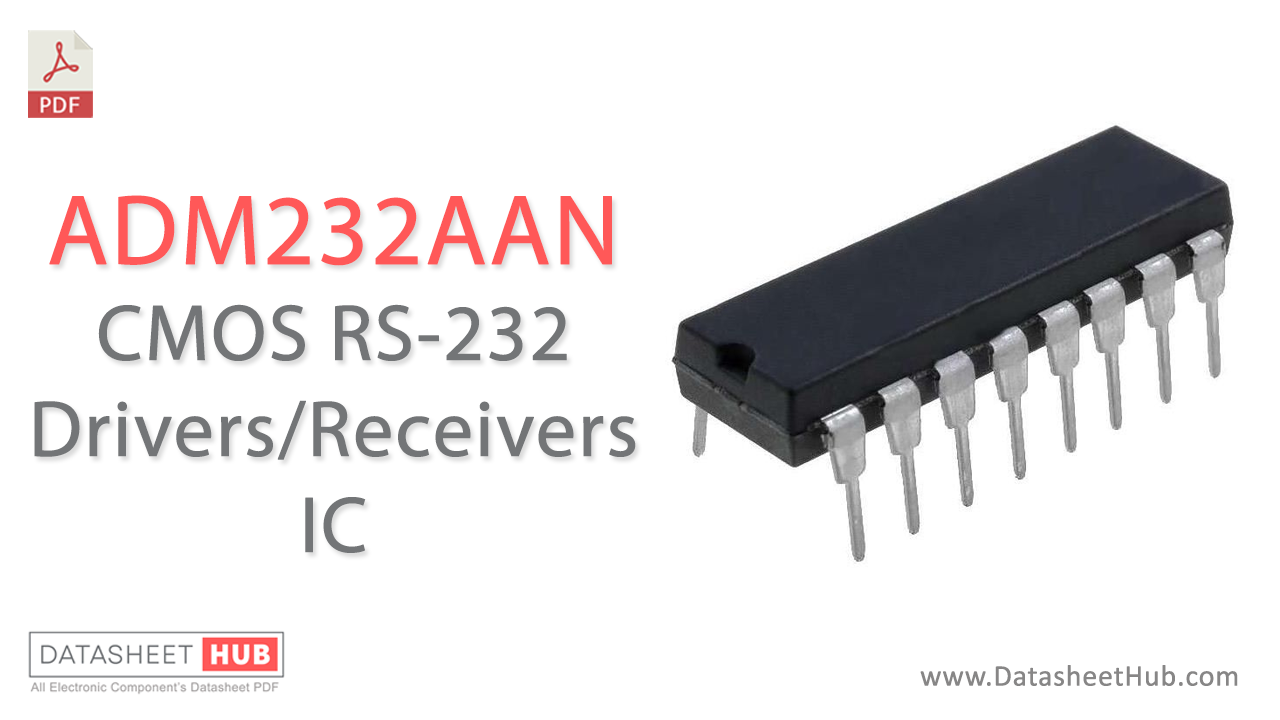

The ADM232AAN from Analog Devices is a high-speed RS-232 line driver and receiver designed for efficient communication. Operating from a single 5V power supply, it utilizes an on-chip charge pump to generate the necessary RS-232 bipolar voltage levels, requiring only small external capacitors (0.1 µF).



This device features two RS-232 drivers and two RS-232 receivers, supporting transmission rates up to 200 kB/s. It meets all EIA-232-E and V.28 specifications. The output swing is approximately ±9V with a 5V supply, and receiver input levels are up to ±30V. The ADM232AAN is pin-compatible with other industry-standard parts like the MAX222, MAX232A, and MAX242.



Fabricated using BiCMOS technology, the ADM232AAN combines low-power CMOS with high-speed bipolar circuitry, minimizing quiescent current to under 5 mA. It is suitable for applications such as computers, peripherals, modems, printers, and instruments. The device is available in a 16-lead DIP package and operates within an industrial temperature range of -40°C to +85°C.

ADM232AAN Quick Information

Product Type: RS-232 Driver/Receiver
Canonical Name: ADM232AAN High-Speed RS-232 Driver/Receiver
Subcategory: Line Drivers/Receivers

ADM232AAN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADM232AAN Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADM232AAN Features

  • High-speed RS-232 line driver/receiver.
  • Operates from a single 5V power supply.
  • Supports transmission rates up to 200 kB/s.
  • Includes two drivers and two receivers.
  • Pin-compatible with MAX222/MAX232A/MAX242.

ADM232AAN Applications

  • Suitable for computer systems.
  • Used in peripheral devices.
  • Ideal for modem interfaces.
  • Applicable to printer connections.
  • Designed for instrumentation.

ADM232AAN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the transmission rate of the ADM232AAN?

The ADM232AAN supports transmission rates up to 200 kB/s.

What power supply voltage does the ADM232AAN require?

The ADM232AAN operates from a single 5V power supply.

How many drivers and receivers are on the ADM232AAN?

The ADM232AAN features two RS-232 drivers and two RS-232 receivers.

What is the output voltage swing of the ADM232AAN?

The output voltage swing is approximately ±9V with a 5V supply.

What are the receiver input levels for the ADM232AAN?

The receiver input levels are up to ±30V.

What is the operating temperature range for the ADM232AAN?

The operating temperature range is -40°C to +85°C.

What package type is the ADM232AAN available in?

The ADM232AAN is available in a 16-lead DIP package.

ADM232AAN Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
