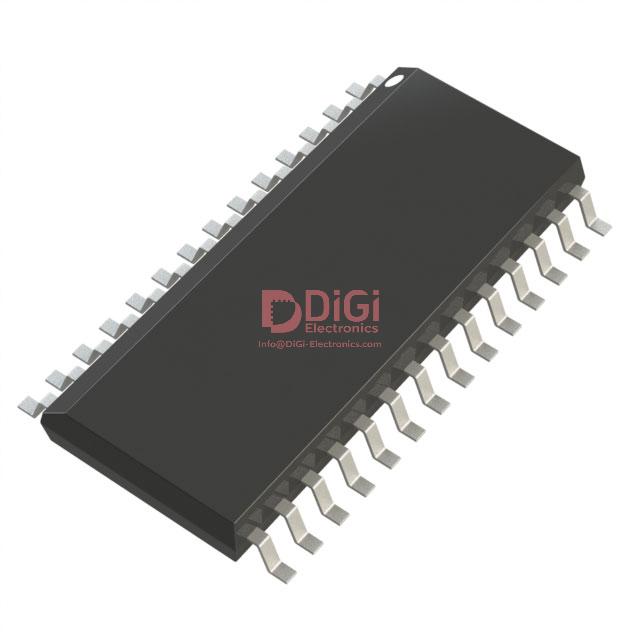

ADM211AR The Analog Devices ADM211AR is a full RS-232 transceiver with 4 drivers and 5 receivers. It operates from a single 4.5V to 5.5V supply.
Mfr Part #:

ADM211AR

Available from 3 distributors
Mfr Name: AD
AD
The Analog Devices ADM211AR is a full RS-232 transceiver with 4 drivers and 5 receivers. It operates from a single 4.5V to 5.5V supply.
✓ Total Stock: 1,876 pcs
$ Price Range: $2.01

ADM211AR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
634 pcs
On Request
634 pcs On Request 1 On Request On Request 96+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
622 pcs
On Request
622 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
620 pcs
On Request
620 pcs On Request 1 On Request On Request 96+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADM211AR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Mounting Type
Operating Temperature
Power Dissipation
Protocol
Receiver Hysteresis
Storage Temperature
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

ADM211AR Description

Short technical summary and product information.

The ADM211AR from Analog Devices is a versatile RS-232 transceiver designed for EIA-232-E and V.28 communication interfaces. It features 4 drivers and 5 receivers, operating efficiently from a single 5V supply. This transceiver supports a data rate of up to 120Kbps and includes on-board charge pump voltage converters to generate the necessary RS-232 output levels.



Key electrical characteristics include a supply voltage range of 4.5V to 5.5V and an operating temperature range of -40°C to 85°C. The device offers ±9V output swing and ±30V receiver input levels. It also supports a low power shutdown mode, reducing power dissipation to less than 5 μW, making it suitable for battery-powered applications.



The ADM211AR is available in a 28-SOIC surface-mount package. Its design is intended for applications such as computers, peripherals, modems, printers, and instruments where reliable RS-232 communication is essential.

ADM211AR Quick Information

Product Type: RS-232 Transceiver
Canonical Name: ADM211AR RS-232 Transceiver
Subcategory: RS-232

ADM211AR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADM211AR Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADM211AR Features

  • 4 drivers and 5 receivers
  • Operates from a single 5V supply
  • 120Kbps data rate
  • Wide operating temperature range
  • Low power shutdown mode

ADM211AR Applications

  • Ideal for computer peripherals
  • Suitable for modem interfaces
  • Used in instrument applications
  • Supports printer communication

ADM211AR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ADM211AR?

The ADM211AR operates from a supply voltage of 4.5V to 5.5V.

What package type is the ADM211AR available in?

The ADM211AR is available in a 28-SOIC (0.295", 7.50mm Width) surface-mount package.

What is the operating temperature range of the ADM211AR?

The ADM211AR has an operating temperature range of -40°C to 85°C.

What is the data rate supported by the ADM211AR?

The ADM211AR supports a data rate of 120Kbps.

How many drivers and receivers does the ADM211AR have?

The ADM211AR features 4 drivers and 5 receivers.

Does the ADM211AR have a low power shutdown feature?

Yes, the ADM211AR features a low power shutdown mode.
