| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Drivers | |
| Receiver Hysteresis | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The ADM208AR from Analog Devices is a CMOS RS-232 transceiver designed for EIA-232-E and V.28 communications interfaces. It features on-board charge pump voltage converters that generate the necessary ±10V output levels from a single 5V supply, making it suitable for applications where ±12V is unavailable.
This transceiver supports a data rate of 120 kB/s and includes 4 drivers and 4 receivers. It operates within a temperature range of -40°C to 85°C and has a supply voltage range of 4.5V to 5.5V. The device consumes a typical operating supply current of 9mA and a total supply current of 13mA.

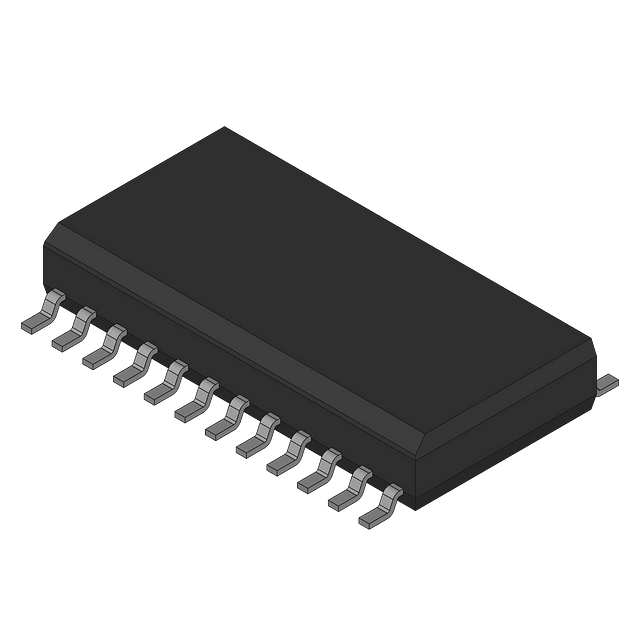

The ADM208AR is available in a SOIC package and is designed for surface mount applications. Its features include ±30V receiver input levels and 650mV of receiver hysteresis, contributing to reliable communication.
Applications for the ADM208AR include computers, peripherals, modems, printers, and instruments where robust RS-232 communication is required from a low-voltage supply.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADM208AR operates from a nominal supply voltage of 5V, with a minimum of 4.5V and a maximum of 5.5V.
The ADM208AR supports a data rate of 120 kbps.
The ADM208AR is available in a SOIC package for surface mounting.
The ADM208AR operates within a temperature range of -40°C to 85°C.
