The ADM1272-1ACPZ-RL is a high-voltage positive hot swap controller and digital power monitor designed by Analog Devices. It allows circuit boards to be safely removed from or inserted into live backplanes. This device controls supply voltages ranging from 16 V to 80 V, with an absolute maximum rating of 120 V, making it suitable for high-voltage systems.
Key features include a PMBus interface for accessing current, voltage, and power readback via an integrated 12-bit ADC. It offers a programmable current limit setting range from 2.5 mV to 30 mV and ±0.85% accurate current measurement. The controller also provides programmable start-up current limit, linear output voltage soft start, and 1% accurate UV and OV thresholds.
Packaged in a 48-lead LFCSP (8x7 mm), the ADM1272-1ACPZ-RL is designed for surface mount applications. It operates within a temperature range of -40°C to 125°C. Applications include 48 V/54 V systems, servers, power monitoring and control, central office equipment, telecommunication and data communication equipment, and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 16 V to 80 V, with an absolute maximum of 120 V.
The operating temperature range is -40°C to 125°C.

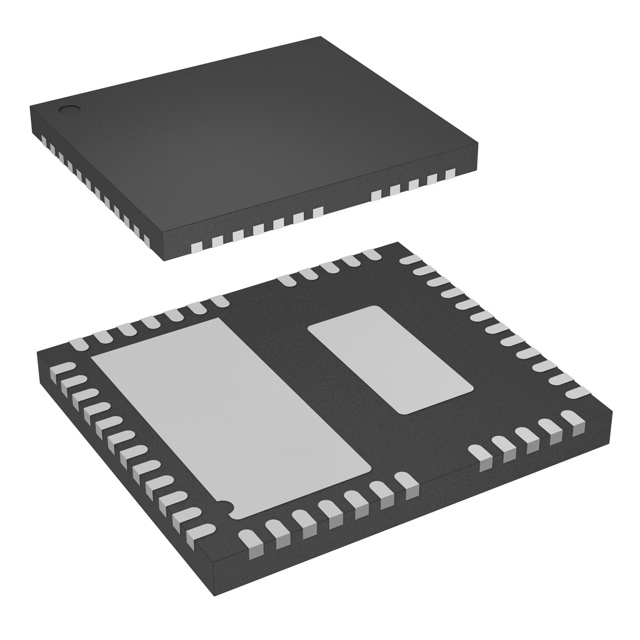

The device is packaged in a 48-LFCSP (8x7) which is a 48-WFQFN exposed pad, CSP package.
The short circuit response time is less than 500 ns.
Current measurement accuracy is ±0.85%.
The device has programmable current limit, slew rate, and thermal limit.
The device has one channel.
