| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Current | |
| Frequency | |
| Main Purpose | |
| Outputs and Type | |
| Regulator Topology | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

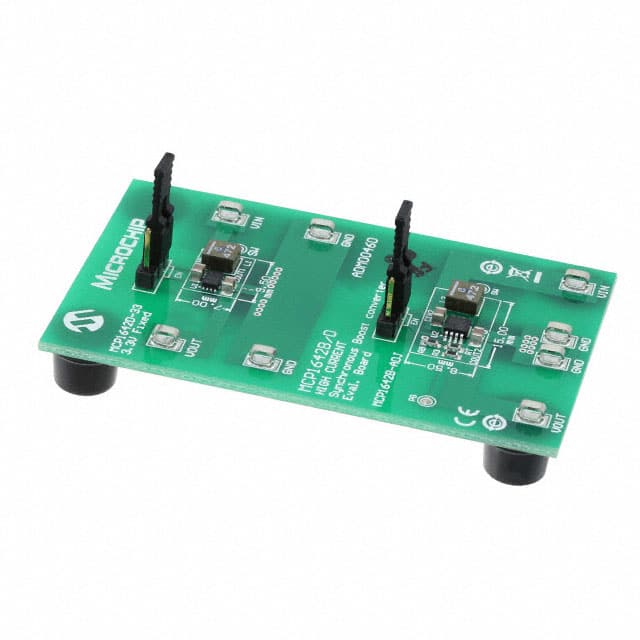

The ADM00460 evaluation board from Microchip Technology is designed to showcase the MCP1642B high-current synchronous boost converter. This board is fully populated and ready for use, providing two non-isolated outputs: one rated for 800 mA and another for 200 mA. It operates with an input voltage range of 1 V to 3 V and a switching frequency of 1 MHz, making it suitable for step-up DC/DC conversion applications.
The evaluation board is based on the MCP1642B IC, which is a high-efficiency synchronous boost converter optimized for low-power and battery-powered designs. The board topology is boost (step-up), and the regulator topology is configured accordingly.
The ADM00460 is supplied as a single board with no additional accessories or documentation specified. It is designed for engineers to evaluate the MCP1642B's performance in a real-world circuit layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $36.56 | $36.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 1 V to 3 V.
It provides two non-isolated outputs with current ratings of 800 mA and 200 mA.
The switching frequency is 1 MHz.
The board uses the MCP1642B synchronous boost converter IC.
The board type is Fully Populated.
