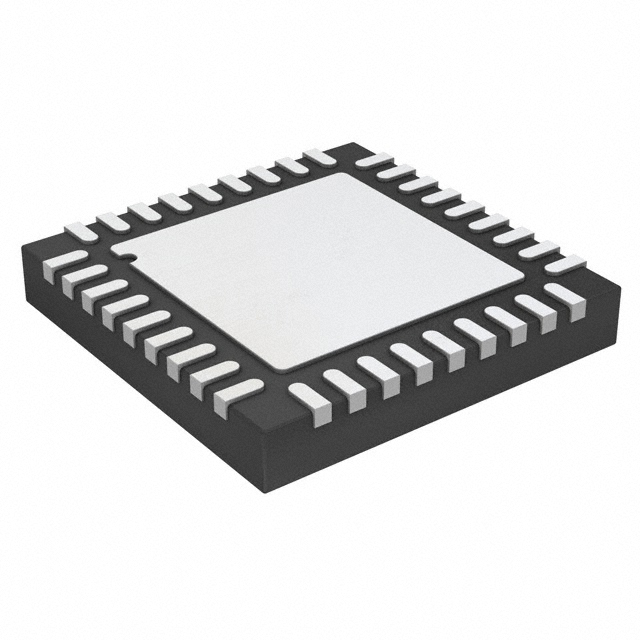

The ADL5591ACPZ-R7 is an RF Modulator IC manufactured by Analog Devices Inc. This component is designed for applications operating within the 1.805GHz to 1.99GHz frequency range.
Key electrical specifications include a P1dB of 16dBm, a noise floor of -157 dBm/Hz, and an output power of 4.7dBm. The device operates with a supply voltage ranging from 4.75V to 5.25V and draws a typical supply current of 170 mA. The test frequency for these specifications is 1.96GHz.
The ADL5591ACPZ-R7 comes in a 36-VFQFN Exposed Pad, CSP package, supplied on tape and reel or cut tape. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 2 (1 Year).
This RF modulator is suitable for various RF signal processing applications where precise modulation is required. Its specifications make it a candidate for use in communication systems and other RF front-end designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RF frequency range is 1.805GHz to 1.99GHz.
The typical P1dB is 16dBm.
The noise floor is -157dBm/Hz.
The supply voltage range is 4.75V to 5.25V.
The typical supply current is 170 mA.
The package is 36-VFQFN Exposed Pad, CSP.
The typical output power is 4.7dBm.
