Mfr Part #:

ADL5570ACPZ-R7

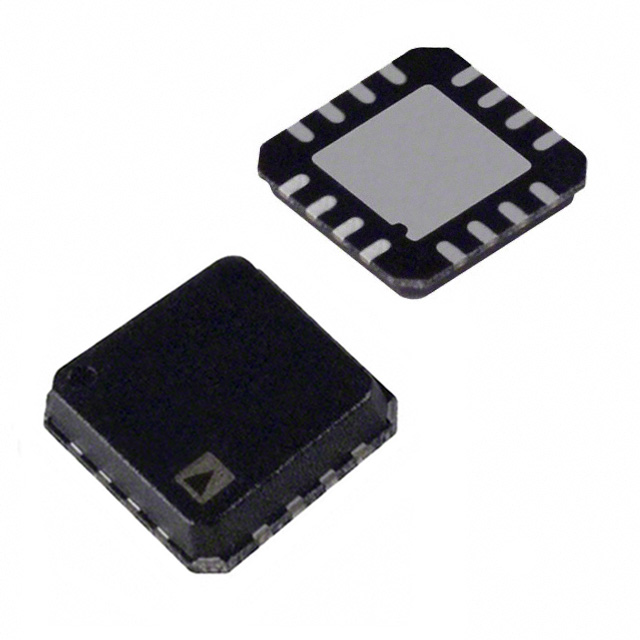

Name: ADL5570ACPZ-R7
Brand: Analog Devices Inc./Maxim Integrated
SKU: ADL5570ACPZ-R7

Description:

IC AMP WIMAX 2.3-2.4GHZ 16LFCSP

Stock on Request

ADL5570ACPZ-R7 Description

Short technical summary and product information.

IC AMP WIMAX 2.3-2.4GHZ 16LFCSP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Amplifiers
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Current	130mA
Frequency	2.3GHz ~ 2.4GHz
Gain	29dB
Mounting Type	Surface Mount
P1dB	31dBm
RF Type	WiMAX / WiBro
Supplier Device Package	16-LFCSP-VQ (4x3.75)
Voltage	3.2V ~ 4.2V
